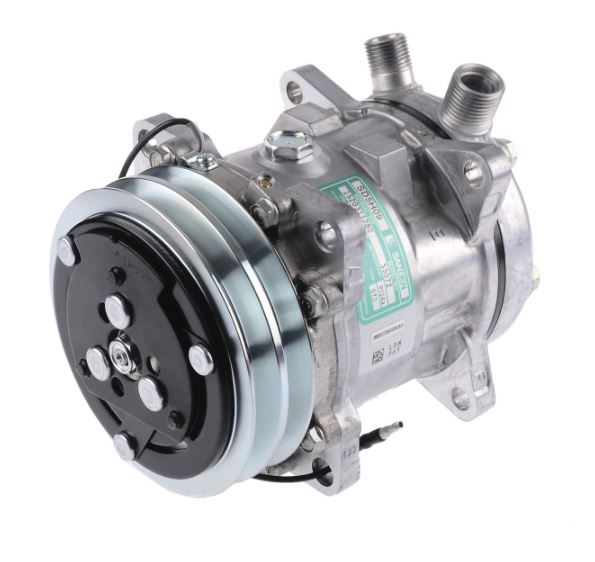

Sanden AC Compressor 12V SD5H09 CXS5072 12V 2GA 125mm Ear Mount
Sanden AC Compressor 12V SD5H09 CXS5072 12V 2GA 125mm Ear Mount
The Sanden CXS5072 SD5H09 air conditioning compressor is listed with a 12V electrical specification, 125mm clutch diameter and ear-mount configuration. The description also identifies A10-5072, with OEX part number CXS5072 and listed original equipment number 5072.
Product identification
- Listed brand: Sanden
- OEX part number: CXS5072
- Additional listed identifier: A10-5072
- Listed original equipment number: S5072
- Compressor series: SD5H09
- Condition: New
Listed specifications
| Specification | Listed detail |
|---|---|
| Voltage | 12V |
| Suits unit make | Sanden |
| Pulley section | 2GA |
| Clutch diameter | 125mm |
| Compressor mounting | Ear mount |

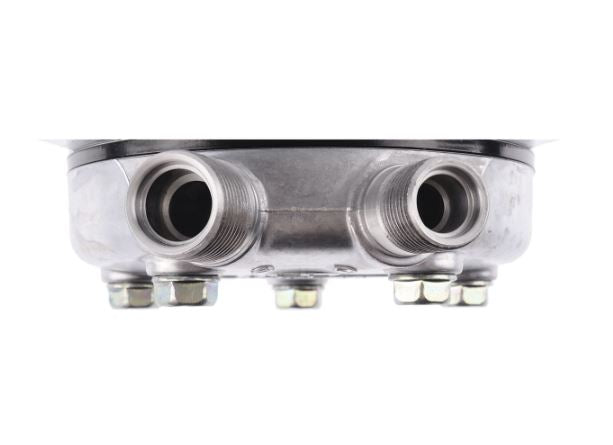

| Fitting type | O Ring in the specification block; VOR in the supplied description. Confirm the connection configuration. |

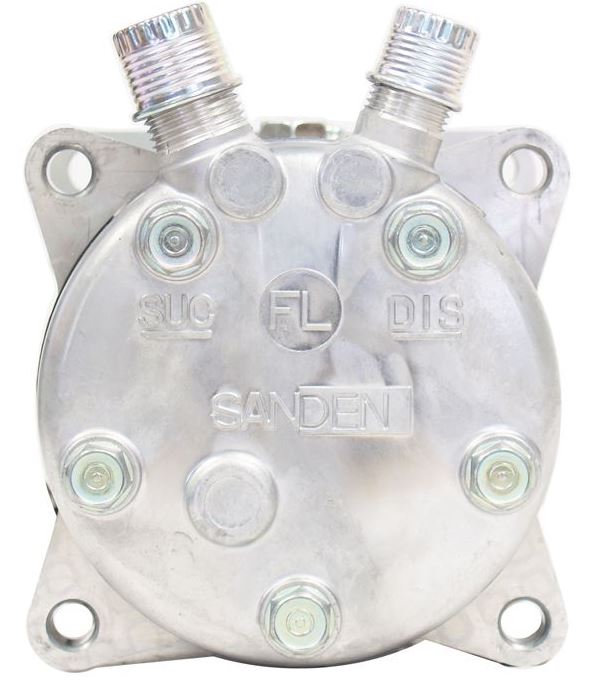

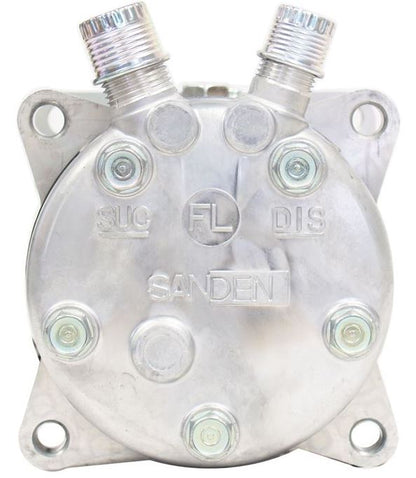

| Head code | FL Head |
| Dust cover | No |
| Replacement clutch reference | CLX5072 |
| Gauge line | 36.6mm |
| Listed oil capacity | 100ml |
Fitment checks before ordering
No specific vehicle applications are provided in this listing. Compare your original compressor's identification, voltage, mounting and bracket arrangement, pulley and belt alignment, clutch, electrical connections and refrigerant-line connections before purchase. The identifiers and replacement clutch reference above are supplied for identification and should be checked against the applicable supplier catalogue.
Installation information
Professional installation is recommended. Confirm the refrigerant type, compressor oil specification and required oil quantity for the particular application before installation. The listed 100ml oil capacity does not establish the prefilled quantity or the final system oil requirement.
During installation, check mounting and belt alignment, clutch operation, electrical connections, and the required system evacuation and charging procedures. Incorrect refrigerant, oil type, oil quantity or installation procedures may result in poor A/C performance or compressor damage.
