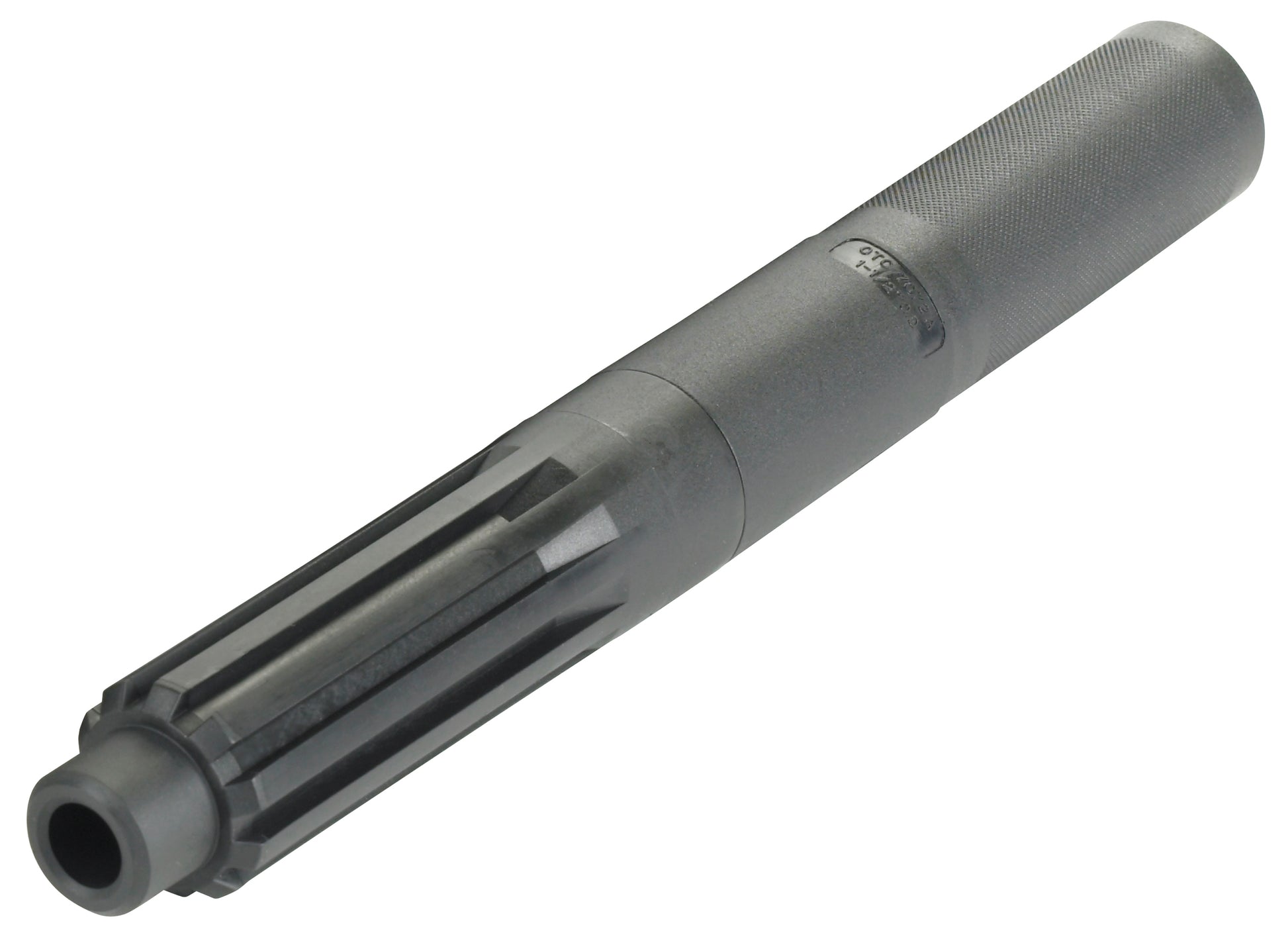

OTC truck clutch alignment shaft

part number 7072A

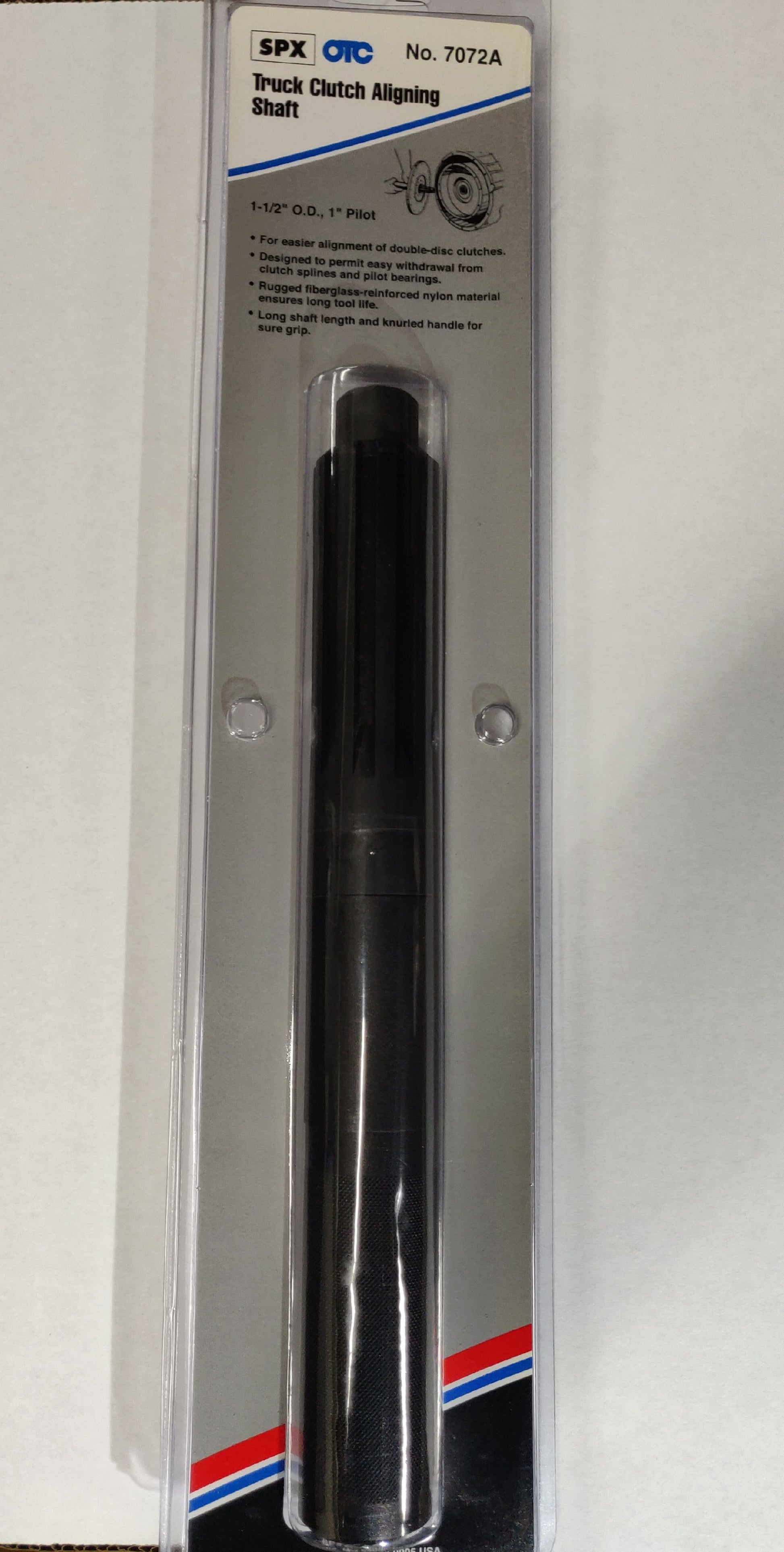

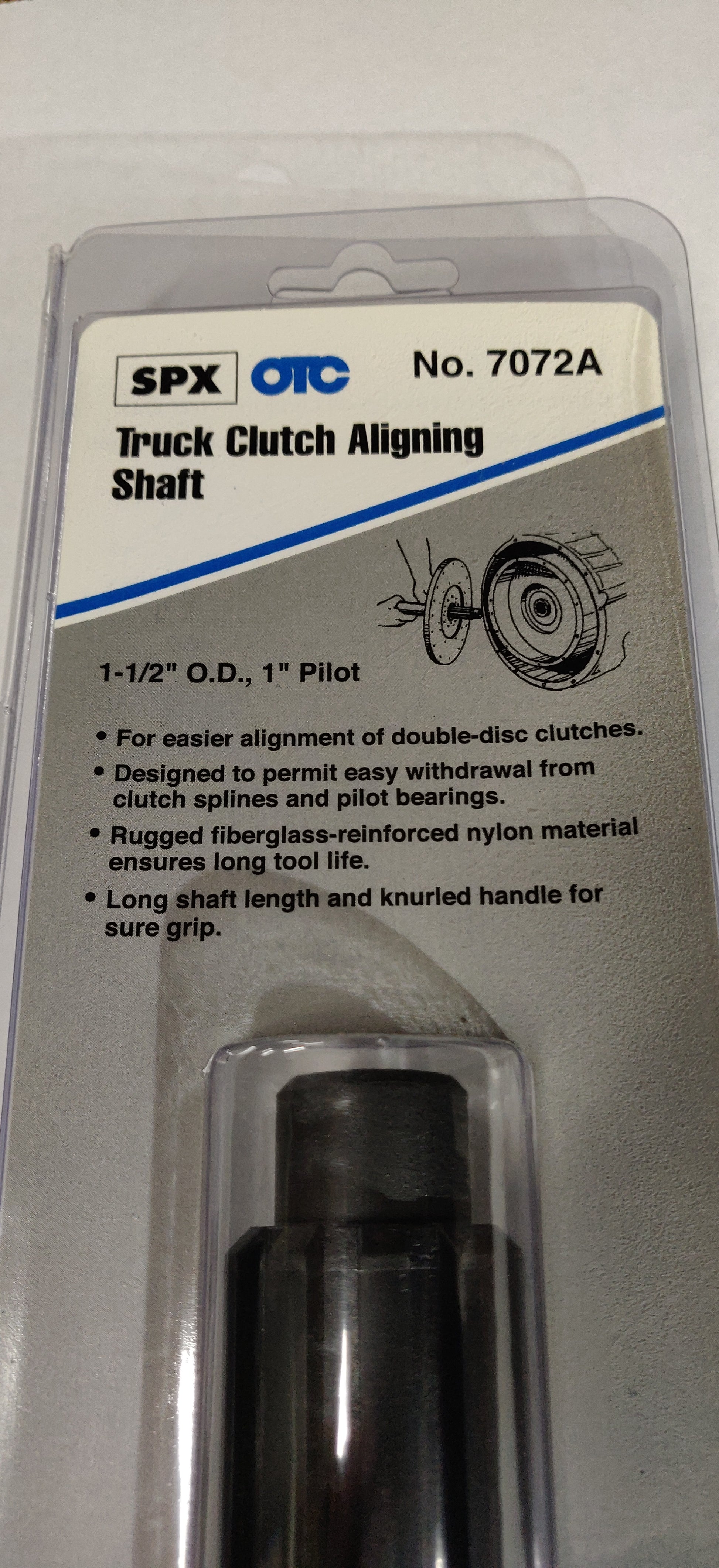

1-1/2" O.D., 1" pilot. length 32cm

OTC 7072A Heavy-Duty Truck Clutch Alignment Tool

Product Overview

Take the guesswork out of heavy-duty drivetrain maintenance with the OTC 7072A Truck Clutch Alignment Tool. Specifically engineered for commercial trucks and heavy equipment, this professional-grade specialty tool ensures perfect concentric alignment between the clutch disc splines and the transmission input shaft during installation.

Avoid the frustration of binding, premature wear, or component misalignment. Designed for durability and ease of use in tight workshop spaces, the OTC 7072A is an essential addition to any commercial fleet garage, heavy vehicle workshop, or diesel mechanic's tool kit.

Why Choose the OTC 7072A Clutch Tool? (Key Benefits)

• Prolonged Transmission Life: Accurate alignment significantly reduces friction and wear on critical transmission components.

• Smoother Gear Shifting: Precise alignment ensures smooth, effortless, and dependable gear shifts post-installation.

• Improved Vehicle Performance: Optimized transmission alignment and performance lead to better overall vehicle operation.

• Time and Cost Savings: An highly efficient alignment process reduces repair times, vehicle downtime, and overall labour costs.

Key Features

• Lightweight and Durable Construction: Engineered to be tough and built to last, while remaining lightweight and incredibly easy to handle.

• Precise Fit for Clutch Disc Splines: Features exact machining to ensure a correct, snug alignment during the installation process.

• Easy to Handle and Operate: User-friendly design makes it highly manoeuvrable and perfectly suitable for confined workspace areas.

• Suitable for Heavy-Duty Applications: Heavy-duty specification makes it ideal for use in commercial trucks and heavy industrial equipment.

Step-by-Step Instructions: How to Use the OTC 7072A

Following the correct alignment procedure ensures a flawless installation every time:

1. Prepare the Transmission: Ensure the transmission is in neutral gear and verify that the flywheel surface is completely clean.

2. Insert the Tool: Carefully insert the alignment tool's pilot into the transmission input shaft.

3. Align the Clutch Disc: Position the clutch disc onto the tool's pilot, ensuring it is perfectly centred and aligned with the transmission input shaft splines.

4. Install the Pressure Plate: Secure the pressure plate onto the flywheel, ensuring it's properly torqued to specification before removing the tool.

Technical Specifications

• Brand: OTC Tools

• Part Number: 7072A

• Application Type: Heavy-Duty Truck & Commercial Equipment

• Tool Type: Manual Clutch Alignment Mandrel

• Material: Lightweight, high-strength composite/steel construction



  OTC 7072A Cross Reference

  • Automann: 579.1066
  • Mack: 633-7072A

  • Freightliner: ABPN25AT150S
  • Ford: D79T7550A
  • OE Aftermarket: M1753
  • Volvo Truck: OTC7072A
  • Genuine Newstar: S-E344
  • Genuine Newstar: SE344
  • Genuine Newstar: XX-M1753
