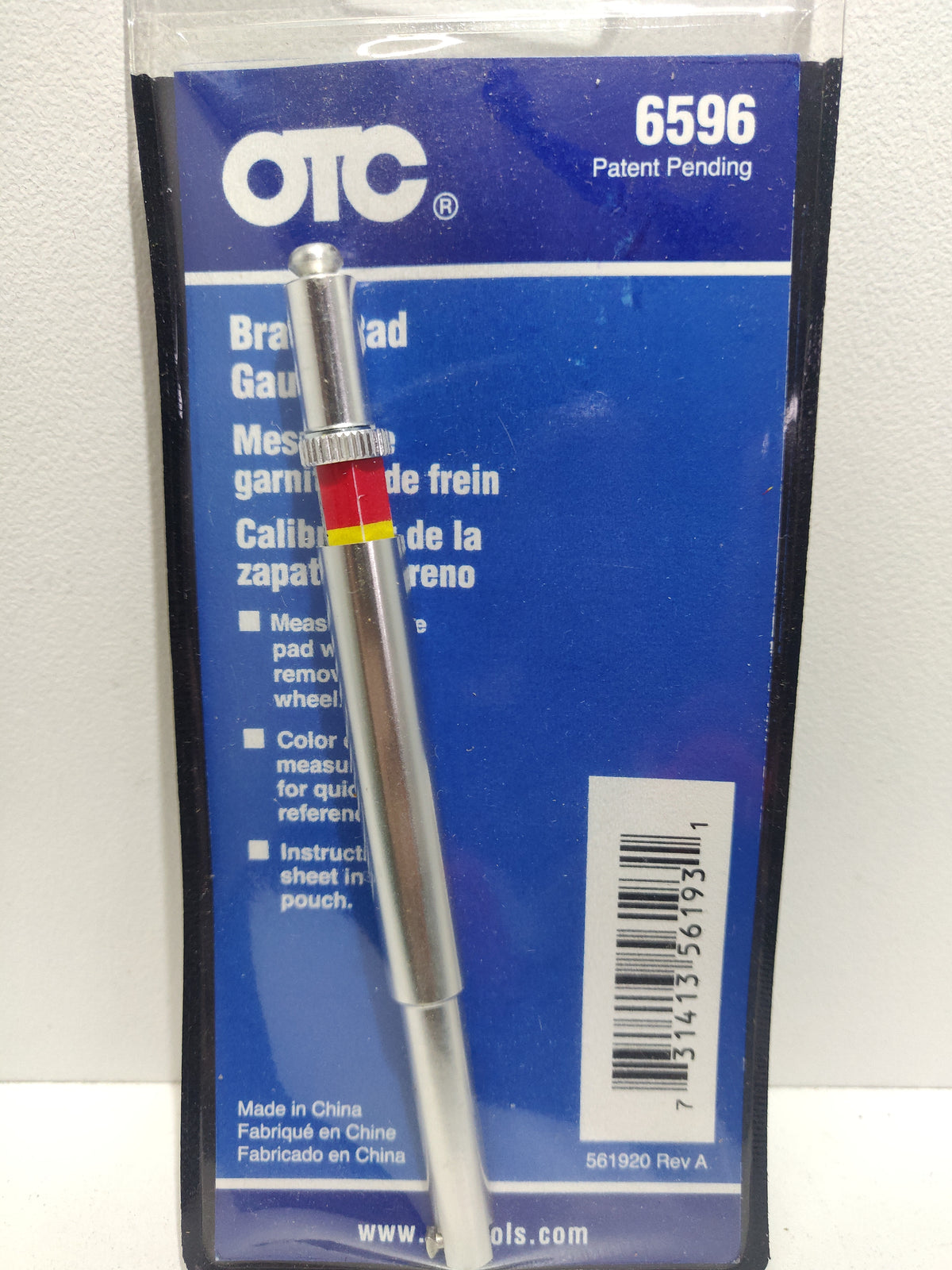

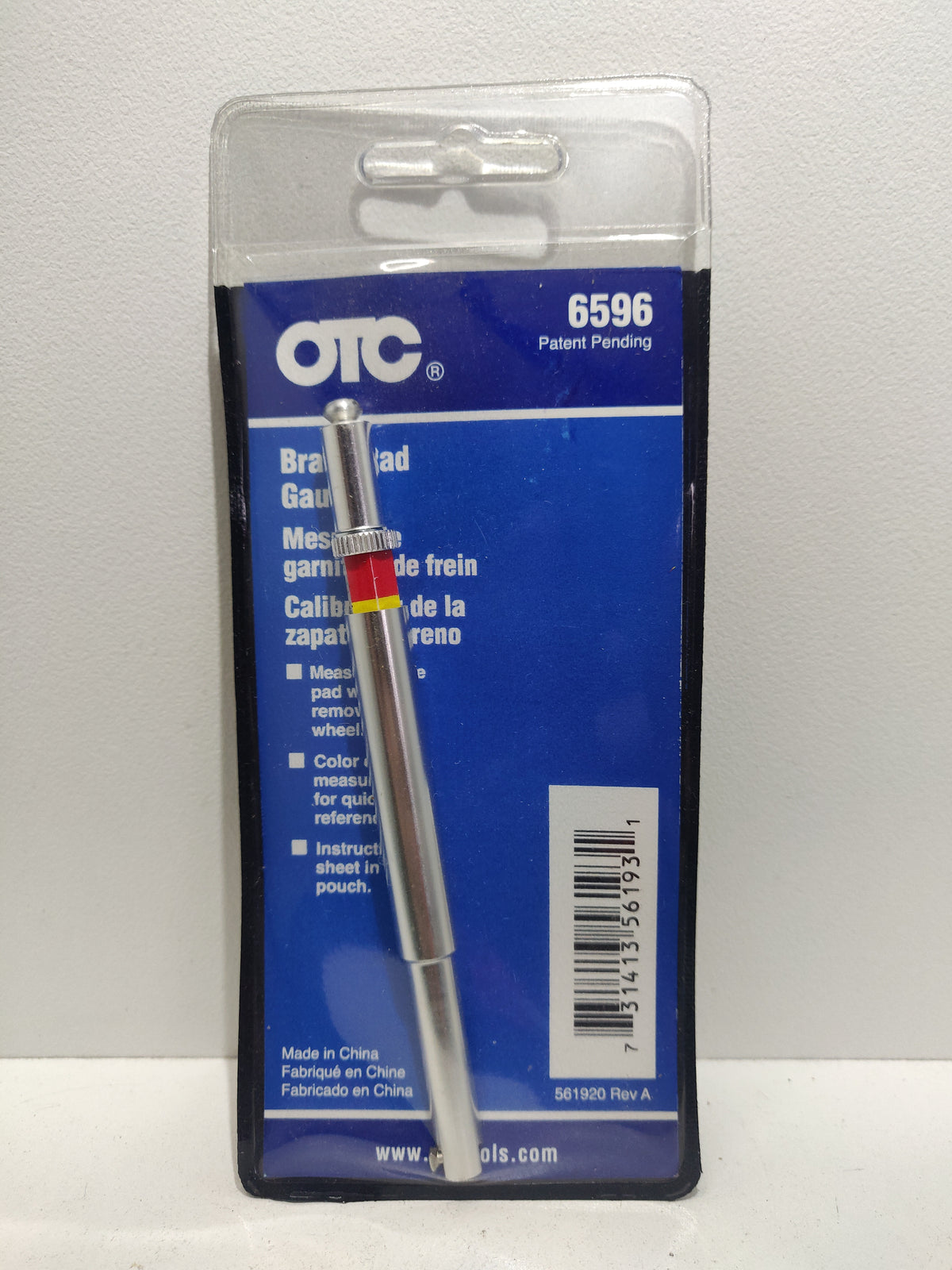

Measure brake pad thickness on the vehicle. In most cases, the OTC 6596 can be used without removing the wheel assembly or brake caliper. Its colour-coded scale provides a quick reference for pad condition.
Features
On-vehicle brake pad thickness measurement
Designed to measure without removing components in most cases

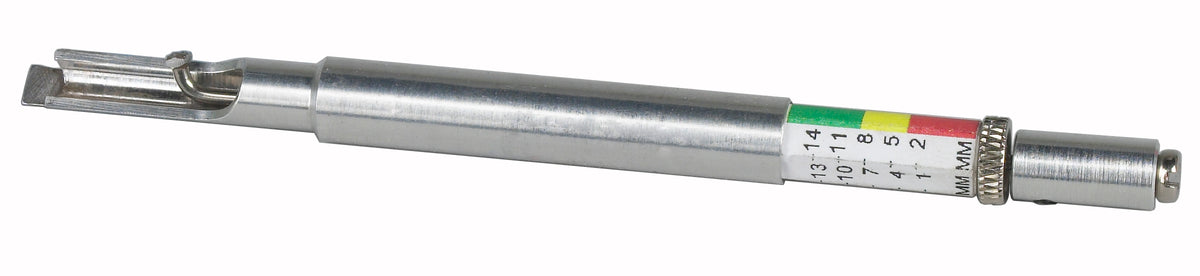

Colour-coded scale for a quick visual reference
Use the measurement to assess pad condition against the vehicle manufacturer’s service limits; remaining service life depends on the application and wear.
Calibration procedure
Lock the probe tip so it rests on either body ledge.
Check that the barrel measurement is 4 mm.
Adjust the set screw and end screw as needed to achieve 4 mm.
