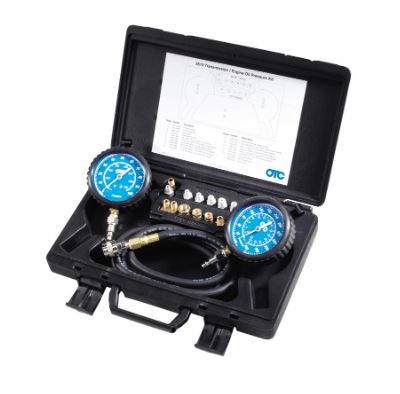

OTC 5610 Transmission & Engine Oil Pressure Test Kit
A professional dual-gauge oil pressure test kit from OTC, suitable for both domestic and import vehicles. High and low pressure gauges make this kit versatile for transmission and engine oil pressure testing, with support for both static and on-road testing. Comes complete with 13 adapters for most applications.
Key Features

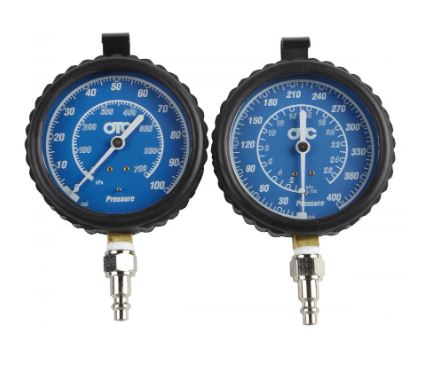

Large 3-1/2" gauges with chrome bezel and rugged protective outer boot
High pressure gauge: 0–400 PSI / 0–2,800 kPa
Low pressure gauge: 0–100 PSI / 0–700 kPa
Both gauges include rear hook for hands-free hanging during testing
Quick couplers on gauges and hose assembly for easy disconnect

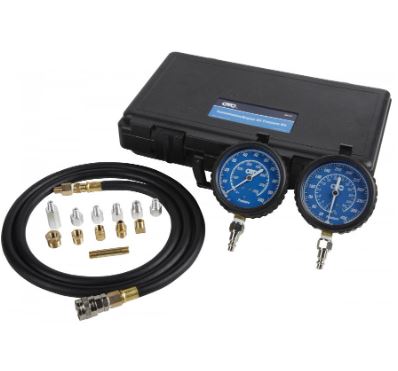

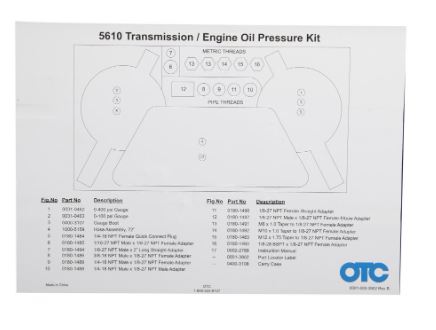

Includes 13 adapters and detailed instruction manual
Suitable for static and on-road testing
Supplied in a rugged blow-moulded hard case with removable lid
Specifications
Property
Value
Part Number
5610
Brand
OTC
High Pressure Range
0–400 PSI / 0–2,800 kPa
Low Pressure Range
0–100 PSI / 0–700 kPa
Adapters Included
13
Weight
2.2 kg
Suitable For
Engine oil pressure testing · Transmission oil pressure testing · Domestic and import vehicles · Static and on-road testing · Workshop and mobile mechanics
