OEX Starter Motor MXS333 12V 8TH CW Mitsubishi Style For Elantra i30
OEX Starter Motor MXS333 12V 8TH CW Mitsubishi Style For Elantra i30
New OEX MXS333 12V starter motor, rated at 1.2 kW, with 8 teeth and clockwise (CW) rotation. Mitsubishi-style unit with a two-hole mount.
Starter motor specifications
| Specification | Listed detail |
|---|---|
| Brand | OEX |
| Part number | MXS333 |
| Condition | New |
| Unit of measure | Each |
| Voltage | 12V |
| Power rating | 1.2 kW |
| Number of teeth | 8 |
| Rotation | CW |
| Suits unit make | Mitsubishi |
| Mount type | 2-hole |
| Flange diameter | 77 mm |
| Mount centres A | 105 mm |
| Mount-hole specification | M10 × 1.25 |
| Overall length | 206 mm |
| Pinion at rest | 10 mm |
| Pinion diameter | 28 mm |
| Clutch type | Dry |
| Listed unit weight | 3.52 kg |
Listed vehicle applications
Match the engine, transmission, body style and production dates below before ordering. The supplied data lists Lantra; the product title uses Elantra. Confirm the exact vehicle application rather than assuming these names are interchangeable.
Hyundai i30 FD
- HYUNDAI I30 FD 2.0L G4GC DOHC 16v MPFI 4cyl 105kW 4sp Auto 4dr Wagon FWD [01/09 - 12/12]
- HYUNDAI I30 FD 2.0L G4GC DOHC 16v MPFI 4cyl 105kW 4sp Auto 5dr Hatchback FWD [01/07 - 12/12]
- HYUNDAI I30 FD 2.0L G4GC DOHC 16v MPFI 4cyl 105kW 5sp Man 4dr Wagon FWD [01/09 - 12/12]
- HYUNDAI I30 FD 2.0L G4GC DOHC 16v MPFI 4cyl 105kW 5sp Man 5dr Hatchback FWD [01/07 - 12/12]
Hyundai Lantra J2
- HYUNDAI LANTRA J2 1.8L G4GM DOHC 16v MPFI 4cyl 94kW 4sp Auto 4dr Sedan FWD [01/95 - 12/00]
- HYUNDAI LANTRA J2 1.8L G4GM DOHC 16v MPFI 4cyl 94kW 4sp Auto 4dr Wagon FWD [01/96 - 12/00]
- HYUNDAI LANTRA J2 1.8L G4GM DOHC 16v MPFI 4cyl 94kW 5sp Man 4dr Sedan FWD [01/95 - 12/00]
- HYUNDAI LANTRA J2 1.8L G4GM DOHC 16v MPFI 4cyl 94kW 5sp Man 4dr Wagon FWD [01/96 ON]
- HYUNDAI LANTRA J2 2.0L G4GF DOHC 16v MPFI 4cyl 101kW 4sp Auto 4dr Sedan FWD [01/99 - 12/00]
- HYUNDAI LANTRA J2 2.0L G4GF DOHC 16v MPFI 4cyl 101kW 4sp Auto 4dr Wagon FWD [01/99 - 12/00]
- HYUNDAI LANTRA J2 2.0L G4GF DOHC 16v MPFI 4cyl 101kW 5sp Man 4dr Wagon FWD [01/99 - 12/00]
Kia Cerato LD
- KIA CERATO LD 2.0L G4GC DOHC 16v MPFI 4cyl 105kW 4sp Auto 4dr Sedan FWD [01/04 - 12/08]
- KIA CERATO LD 2.0L G4GC DOHC 16v MPFI 4cyl 105kW 4sp Auto 5dr Hatchback FWD [01/05 - 12/08]
Warranty information
OEX brand starter motor with a passenger 3 years / 75,000 km” and 1 year commercial warranty. Please purchase according to your kilometre limits and type of use.
Frequently asked questions
Is the OEX MXS333 new or remanufactured?
The supplied product specifications identify it as new.
What voltage, power and tooth count does it have?
It is listed as 12V, 1.2 kW and 8 teeth, with clockwise rotation.
Does Mitsubishi-style mean it fits Mitsubishi vehicles?
The unit make is listed as Mitsubishi, but the vehicle application records supplied here are Hyundai and Kia. Do not infer vehicle fitment from the unit style alone.
Are automatic and manual applications listed?
Yes. The product data shows this starter motor suits both AUTO and MANUAL on some models only - if unsure, please submit vehicle details so we can assist.
What warranty applies?
The starter motor has two different warranty descriptions. Confirm the applicable passenger or commercial terms and kilometre limit before purchase.

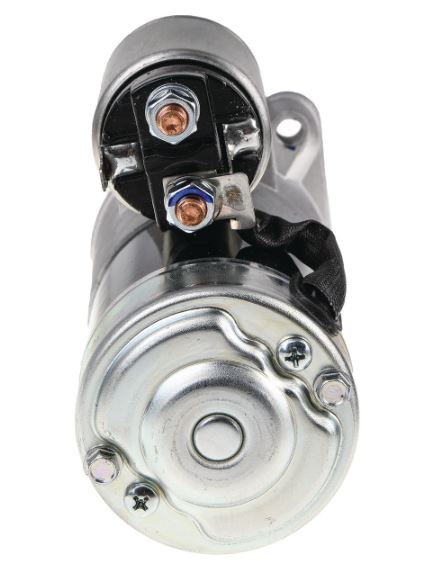

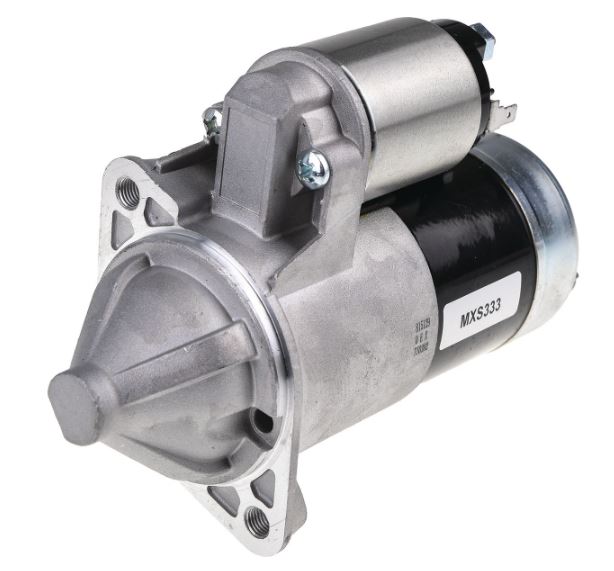

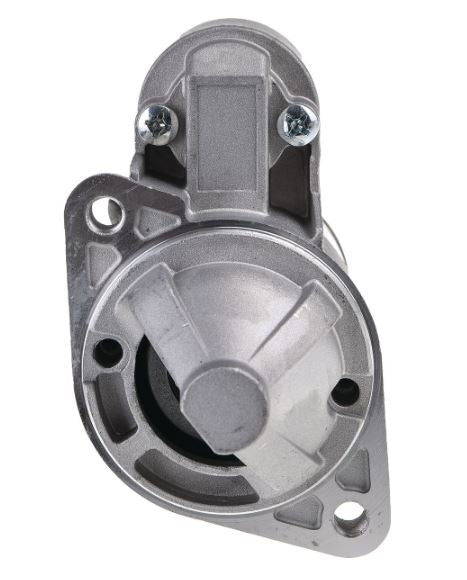

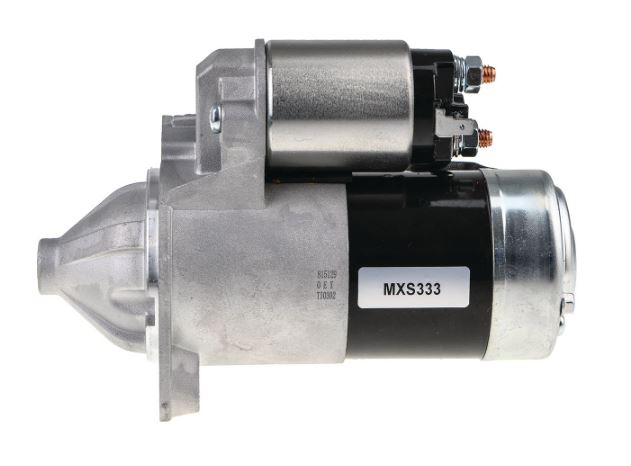

** photos used are for reference of shape only **
