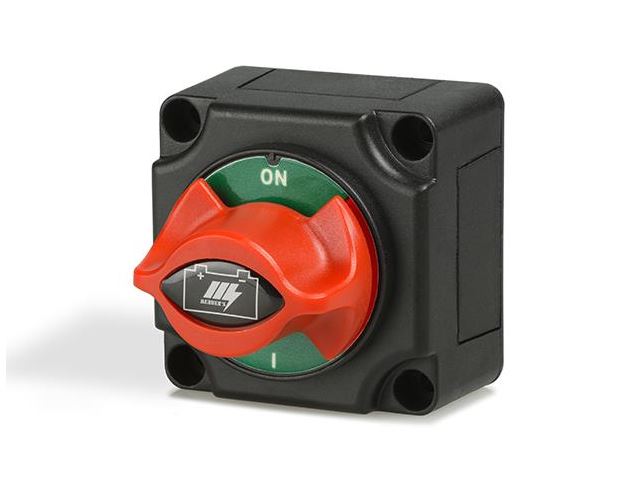

A heavy-duty panel-mount battery disconnect switch from Italian manufacturer Menber's. The 08080700 features a rotary knob actuator, removable cover, and pre-cut sides for flexible cable routing — ideal for marine and automotive electrical system protection.
Key Features
300A continuous current rating for high-demand 24V systems
SPST (Single Pole Single Throw) — simple On/Off disconnect
Rotary knob actuator for easy operation
Silver-plated copper M10 contacts for reliable, low-resistance switching
Panel-mount enclosure with removable cover and pre-cut cable exit sides
IP54 rated — protected against dust and water splashes
Wide operating temperature range: -40°C to +50°C
Italian-made quality from Menber's
Specifications
Property
Value
Part Number
08080700
Voltage Rating
24V DC
Continuous Current Rating
300A
Inrush Current Rating
1,000A
Switch Type
SPST (On/Off)
Actuator
Rotary knob
Mounting
Panel mount (4 x Ø6.5mm holes)
Terminal Contacts
Silver-plated copper M10
Ingress Protection
IP54
Operating Temperature
-40°C to +50°C
Country of Origin
Italy
Suitable For
Marine / boats · Trucks · Caravans · Motorhomes · Heavy equipment · 4WD / off-road · Automotive electrical systems
