Jaylec Starter Motor 70-8574 Ford Ranger Courier Bravo BT50
Jaylec Starter Motor 70-8574 Ford Ranger Courier Bravo BT50

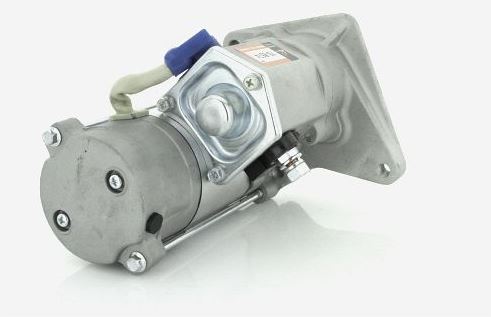

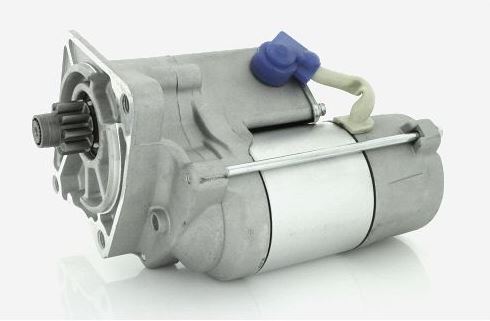

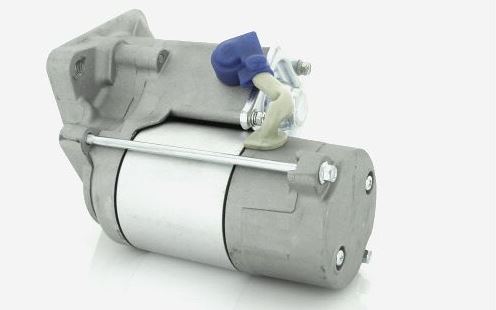

The Jaylec 70-8574 is a new 12V 2.0kW starter motor with a 9-tooth pinion and listed CW rotation. Listed Ford Courier and Mazda B Series applications, specifications and part references are detailed below.
Listed Vehicle Applications
| Vehicle | Series | Years |
|---|---|---|
| Ford Courier | PB | 1980–1985 |
| Ford Courier | PC | 1985–1995 |
| Ford Courier | PD | 1996–1999 |
| Ford Courier | PE | 1999–2002 |
| Ford Courier | PG | 2002–2006 |
| Mazda B Series | B Series | 1999–2006 |
Compare your original starter motor’s part number, electrical rating, tooth count, mounting arrangement and physical dimensions before ordering. Vehicle model and year alone do not confirm suitability.
Specifications
| Brand | Jaylec |
|---|---|
| Part number | 70-8574 |
| Condition | New |
| Voltage | 12V |
| Power | 2.0kW |
| Number of teeth | 9 |
| Pinion diameter | 29 |
| Rotation | CW |
| Pinion at rest | 15 |
| Flange diameter | 82 |
| Mount hole centre-to-centre | 75 X 94 X 137 |
| Mount hole diameter | 3 X 8.5 |
| Overall length | 228 |
Listed Cross-References
Ford
- F8RU 11000 AA
- WL9 118400
- XM34 11002 AA
- XM34 11002 CA
- 3601369
- 4348654
Mazda
- WL02-18-400
- WL02-18-400A
- WL81-18-400
- WL91-18-400
Use these listed references alongside the vehicle application and physical specifications when checking compatibility.
Frequently Asked Questions
What are the voltage and power ratings of the Jaylec 70-8574?
The listed ratings are 12V and 2.0kW.
How many teeth does this starter motor have?
The Jaylec 70-8574 is listed with a 9-tooth pinion.
Which vehicles are listed for this starter motor?
The supplied applications are Ford Courier PB 1980–1985, PC 1985–1995, PD 1996–1999, PE 1999–2002 and PG 2002–2006, plus Mazda B Series 1999–2006. Confirm suitability against the original starter motor before ordering.
What rotation is specified?
The listed rotation is CW, meaning clockwise.
How do I check compatibility?
Compare your original starter’s part number, electrical rating, tooth count, mounting arrangement and physical dimensions with this unit. Model name and year alone do not confirm suitability.
