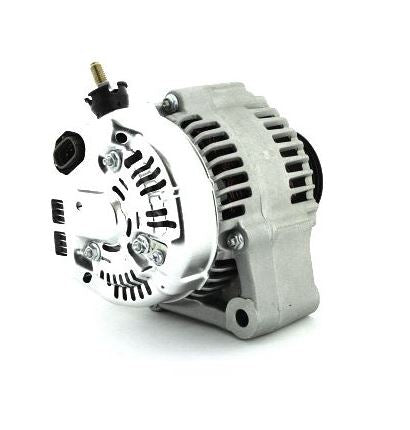

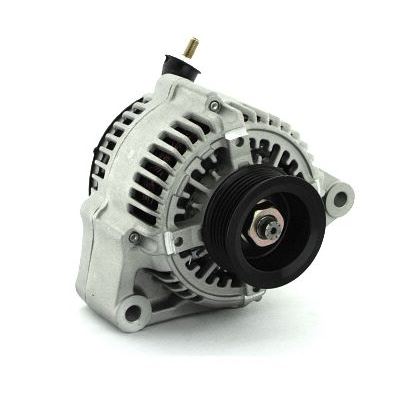

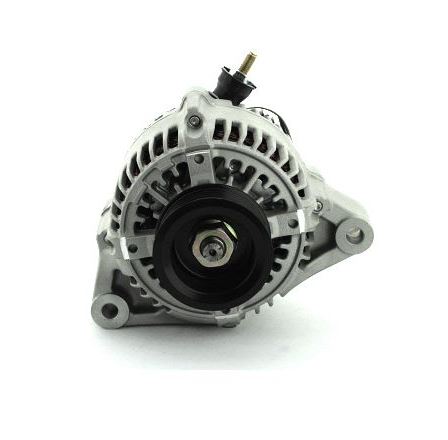

The Jaylec 65-8353 is a 12V 100A alternator with an oval EP24 plug, internal regulator and 6PV fixed pulley.
Electrical specifications
- Brand: Jaylec
- Part number: 65-8353
- Condition: New
- Voltage: 12V
- Amperage: 100A
- Plug shape: Oval
- Connections plug number: EP24
- Terminals: B+, S, IG, L
- Regulator type: Internal
- Excitation: External
- Ground: Negative
Mounting and pulley dimensions
- Mount leg ID: 58mm
- Centre to centre mounts: 158mm
- Top mounting hole ID: 10mm
- Bottom mounting hole ID: 10mm
- Shaft size: 17mm
- Pulley type: 6PV fixed
- Pulley grooves: 6
- Pulley diameter: 67mm
- Weight: 8kg
Listed applications
- Toyota Landcruiser UZJ100 with engine 1UZFE
- Lexus SC300 with 1UZFE engine
Listed Denso references
- 100211-6060
- 100211-635
- 100211-6350
- 100211-639
- 100211-6390
- 100211-6410
- 100211-6440
- 101211-7180
- 101211-7860
- 101211-7861
- 101211-7862
Frequently asked questions
What voltage and output is the Jaylec 65-8353?
The alternator is specified at 12V and 100A.
What plug does it use?

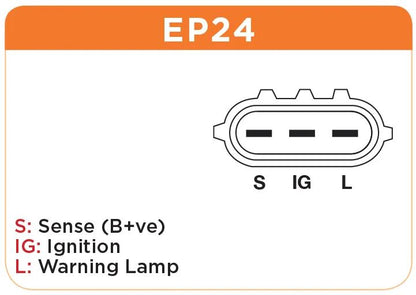

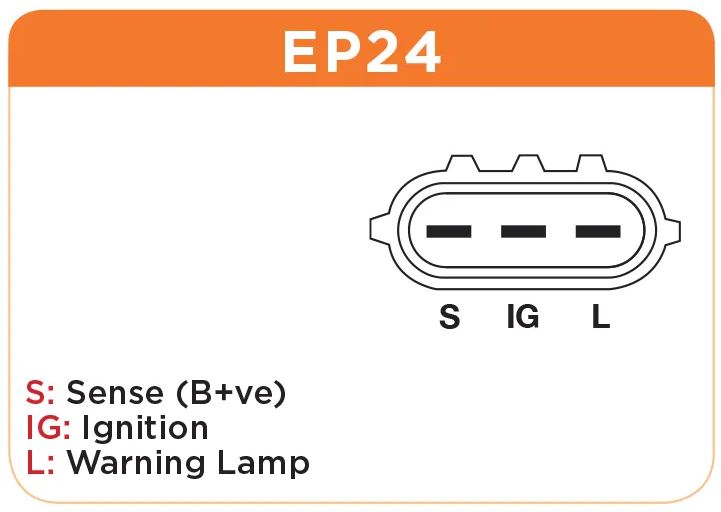

It has an oval plug identified as EP24, with terminals B+, S, IG and L.
What pulley is fitted?
It has a 6PV fixed pulley with six grooves and a listed diameter of 67mm.
