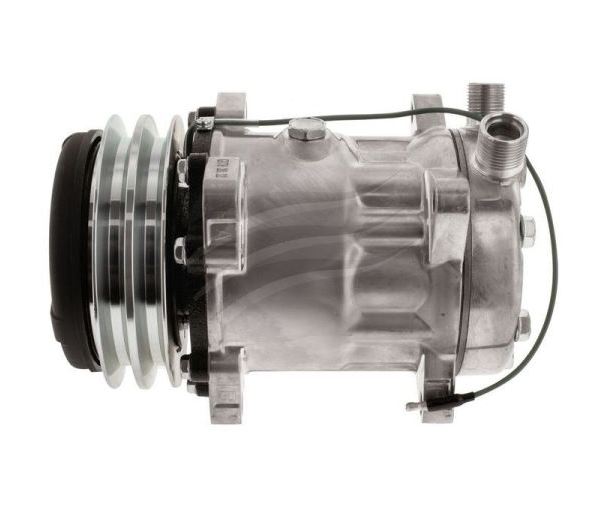

Jayair CM0888J AC Compressor SD7H15 24V 2A 132mm VOR Ear Mount

The Jayair CM0888J is a new 24V SD7H15 air conditioning compressor with a 2A 132mm pulley, VOR ports and ear-mount configuration. Listed John Deere applications and reference numbers are provided below to help you check suitability against your original compressor.

Specifications

• Brand: Jayair
• Part number: CM0888J
• Condition: New
• Compressor model: SD7H15
• Voltage: 24V
• Pulley type: 2A
• Pulley diameter: 132mm
• Ports: VOR
• Mounting style: Ear mount
• Refrigerant type: R134a
• Listed prefilled oil quantity: 160ml

Listed John Deere applications

Excavators

• John Deere 110
• John Deere 120
• John Deere 160LC

Wheel loader

• John Deere 744E

Model years and serial-number ranges are not specified in this listing. Confirm suitability for your particular machine before ordering; the model name alone is not confirmation of fitment.

Listed reference numbers

• 425-963-A230
• 4652SAN
• AT136850
• AT329760
• VOE11007314

These numbers are provided as identification references, not a guarantee of interchangeability. Compare your original compressor's part number and specifications before purchase.

Fitment and installation checks

Check the 24V electrical specification, ear-mount arrangement, 2A pulley type, 132mm pulley diameter and VOR port configuration against your original unit.

The listed prefilled oil quantity is 160ml. Oil type and grade are not specified here. Have your installer confirm the required oil specification and quantity for the application rather than assuming the prefilled amount is the final system requirement.

Common questions

What voltage is the Jayair CM0888J?

This compressor is specified for 24V applications.

What pulley does it use?

It has a 2A pulley with a listed diameter of 132mm.

Which John Deere machines are listed?

The listed applications are John Deere 110, 120 and 160LC excavators, and the 744E wheel loader. Confirm the original compressor specifications and your machine's application details before ordering.



12 month/25,000km warranty - providing it is a compressor internal failure not as a result of debris not cleaned from a previous mechanical failure - evidence of system cleaning prior to new AC compressor will be required  to facilitate a warranty repair.
