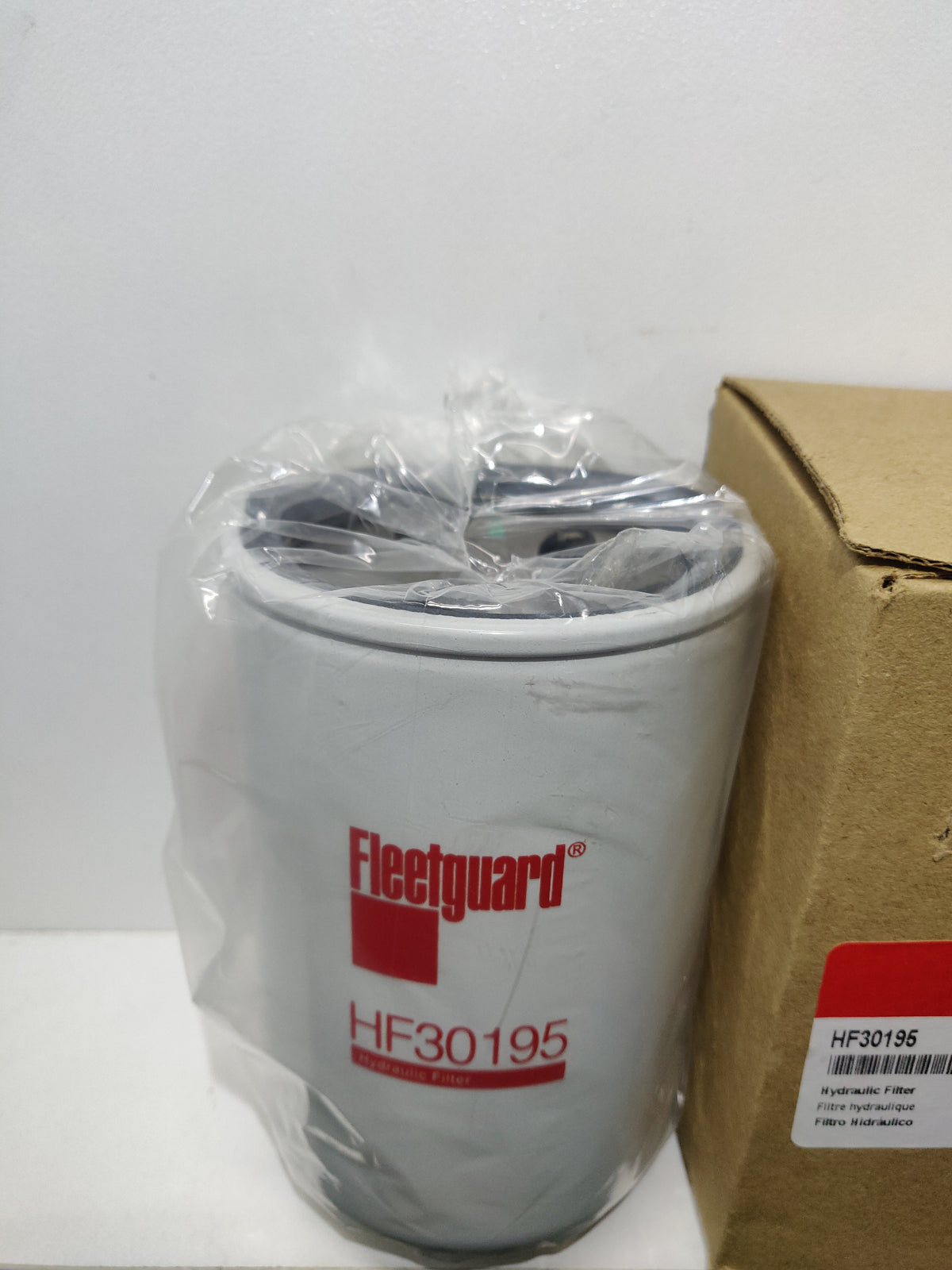

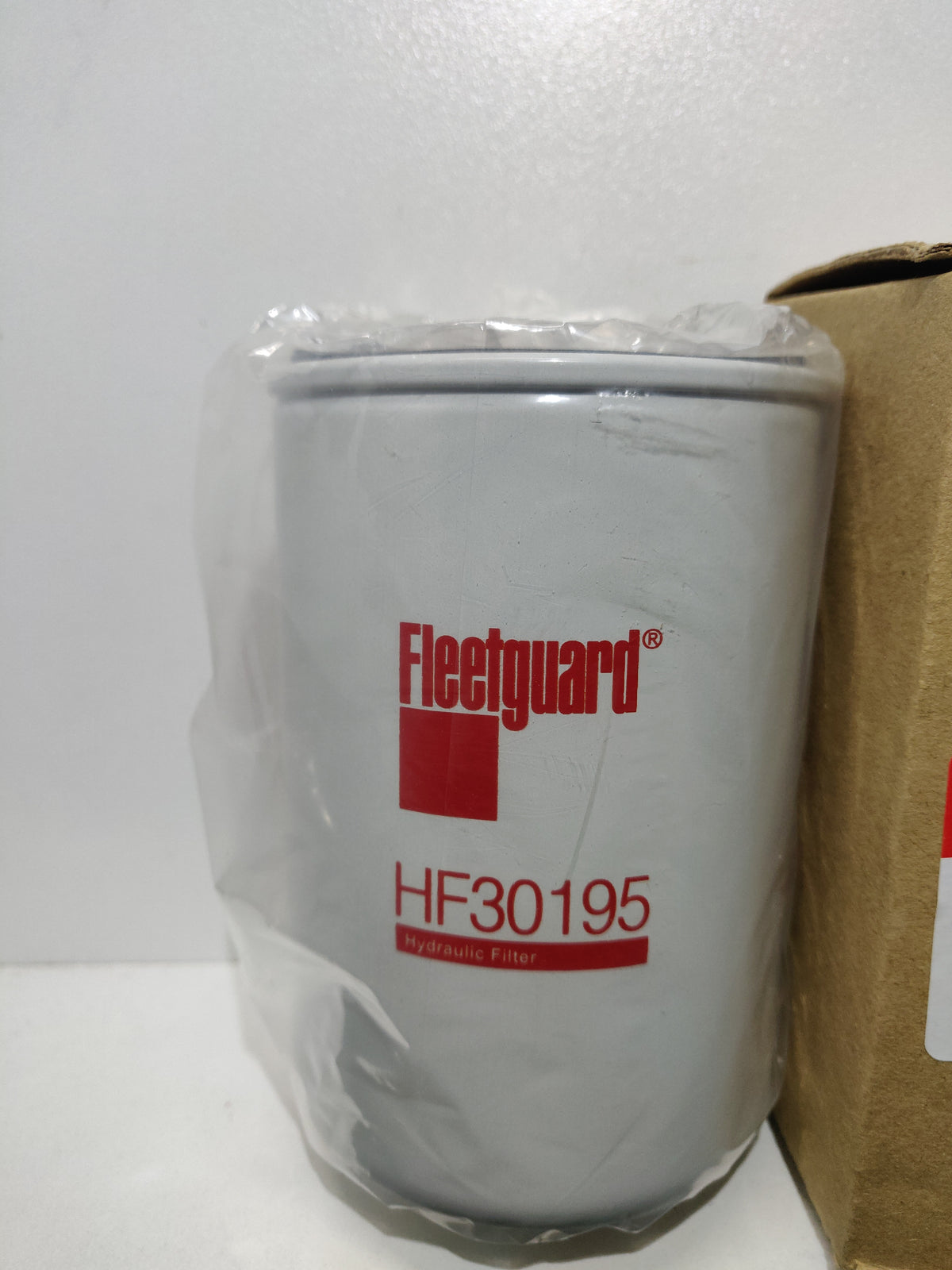

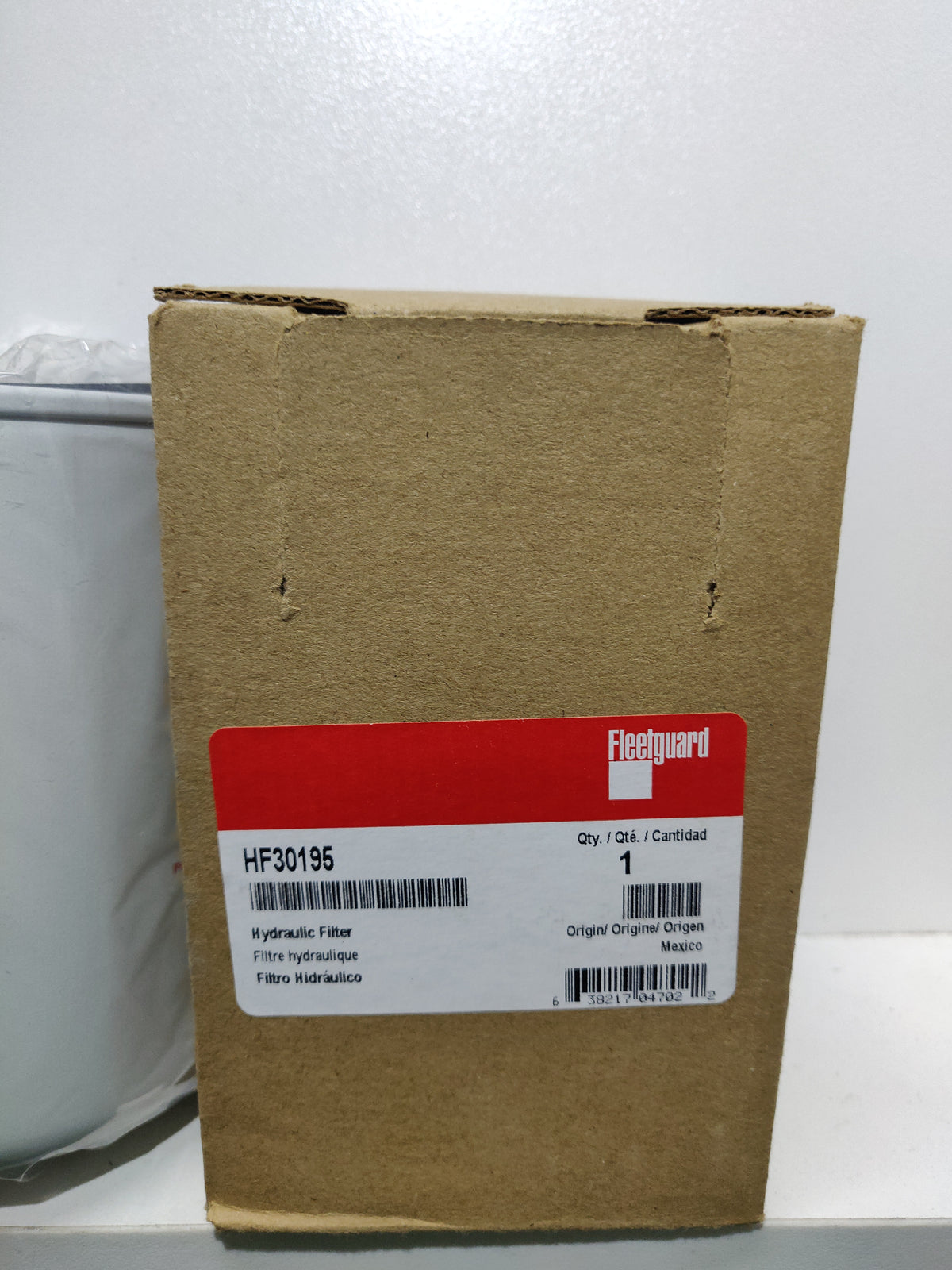

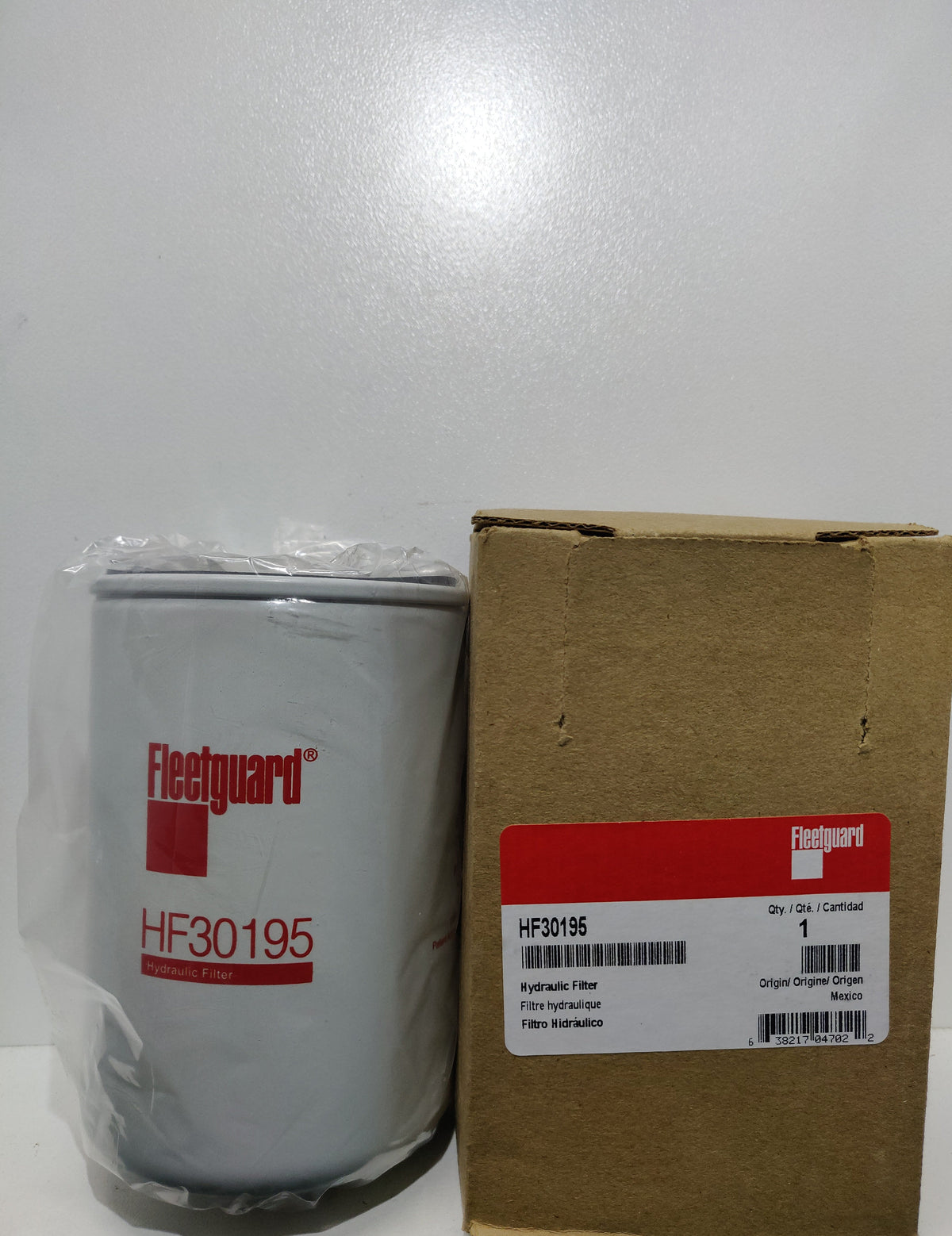

Fleetguard HF30195 Hydraulic Spin-On Filter
Fleetguard HF30195 Hydraulic Spin-On Filter
The Fleetguard HF30195 is a new hydraulic spin-on filter with synthetic media. Check the required part number, dimensions, thread and filtration specifications against your equipment requirements before ordering.
Specifications
| Brand | Fleetguard |
|---|---|
| Part number | HF30195 |
| Condition | New |
| Filter type | Hydraulic spin-on |
| Media | Synthetic |
| Length | 147.83 mm / 5.82 inches |
| Largest outside diameter | 93.47 mm / 3.68 inches |
| Thread | 1 1/2-16 UN 2B |
Supplied Filtration Data
The supplied data lists particle size at Beta 75 as 0 micron and particle size at Beta 200 as 3 micron. These figures require manufacturer verification and should not be interpreted as a confirmed zero-micron filtration claim.
Listed Replacement and Cross-References
The supplied listing identifies HF6675 as an older part number replaced by HF30195. Confirm this supersession and application suitability against the manufacturer’s current information before substitution.
| Brand / reference source | Listed references |
|---|---|
| Fleetguard | HF6675 |
| Fairey Arlon | R740H0403A |
| Hydac | 90MA003BN |
| Baldwin | BT8316-MPG |
| CARQUEST | 84401 |
| Donaldson | P167829, P566920 |
| Fram | P8604 |
| Hastings | HF961 |
| HIFI-FILTER | SH87250 |
| LUBER-FINER | LFP8316G |
| NAPA | 7401 |
| Wix | 57401 |
| Additional supplied references | BT8316, MFE9003BN2 |
These are supplied cross-references, not confirmation of identical filtration performance or equipment compatibility. BT8316 and BT8316-MPG are retained as separate references. Confirm the required filter specifications before replacement.
Frequently Asked Questions
What type of filter is the Fleetguard HF30195?
The HF30195 is a hydraulic spin-on filter with synthetic media.
What are the listed dimensions?
The listed length is 147.83 mm and the largest outside diameter is 93.47 mm.
What thread does it use?
The supplied thread specification is 1 1/2-16 UN 2B.
How do I check whether it suits my equipment?
Confirm the required filter part number, thread, dimensions and filtration specifications against your equipment manufacturer’s requirements. Matching dimensions alone does not establish compatibility.
