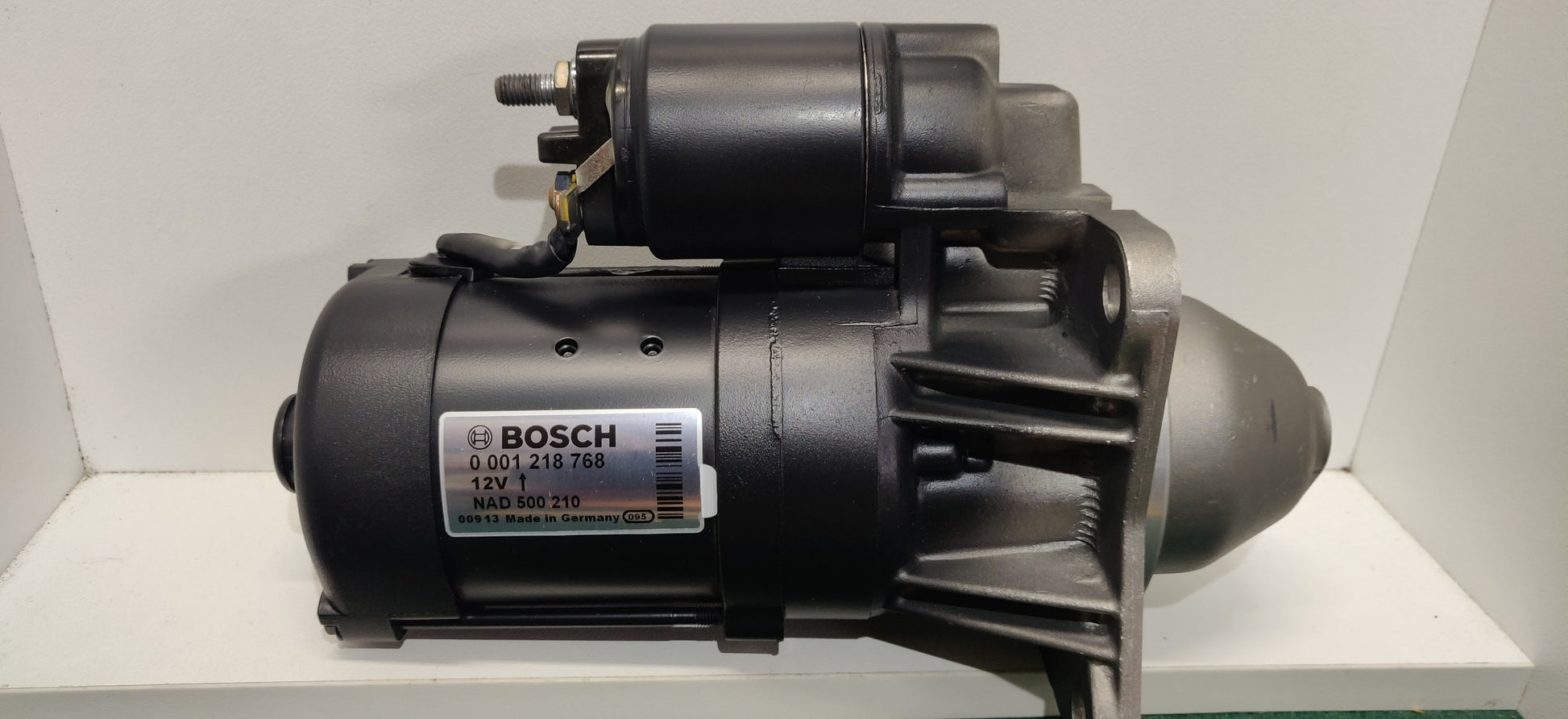

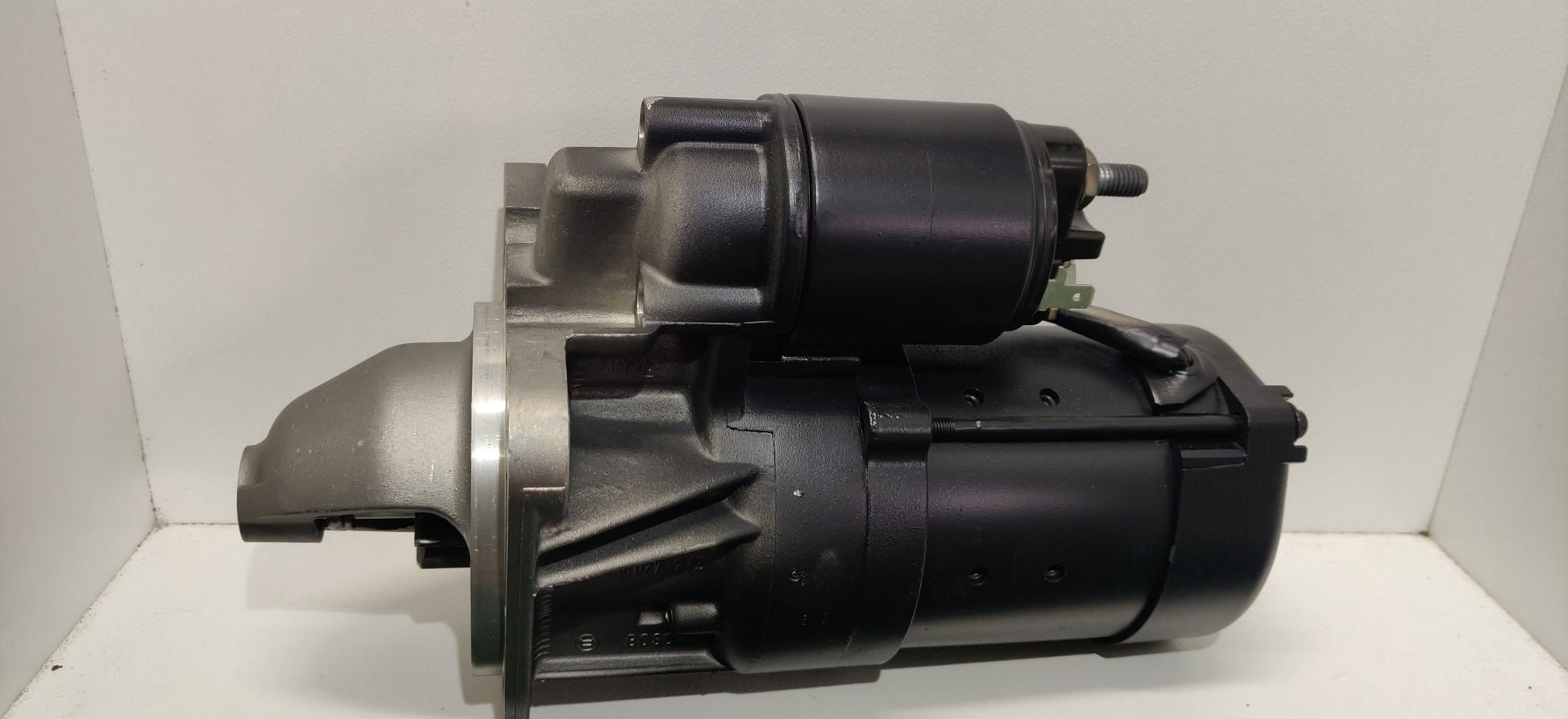

Bosch starter motor 0001218768 12V 9T 2.3kW CW Land Rover Defender Discovery TD5

BOSCH starter motor 12 volt 9 teeth Clockwise 2.3kW

Part number 0001218768

Made in Germany

12 month warranty

Suits Land Rover:

Defender
08/1990 - 12/2001 4 cylinder 2.5 Gemini TCI D.I. 23L <200/300 Tdi> Engine number -> 11L24823A
Defender
Series 110 08/1990 - 12/2001 4 cylinder 2.5L Gemini TCI D.I. 23L <200/300 Tdi> Engine number ->11L 24823A
Series 110 06/1998 - 07/2007 5 cylinder 2.5L TD5

Discovery
09/1989 - 09/1994 4 cylinder 2.5L 200 Tdi Engine number -> 12L50756A
Discovery
10/1998 - 08/2004 5 cylinder  2.5L 15P 10P

Description
Rated Power [kW]:
2,3
Voltage [V]:
12
Number of Teeth:
9
Rotation Direction:
Clockwise rotation
Number of mounting bores:
3
Flange Diameter [mm]:
92
Number of threaded holes
0
Clamp:
50, 30
Position / Degree:
links
Pinion Rest Position [mm]:
21
Starter Type:
Self-supporting
Length [mm]:
274
Bore Diameter [mm]:
12
Bore Diameter 2 [mm]:
12
Bore Ø 3 [mm]:
12
Mounting Angle [degrees]:
45
Jaw opening angle measurement [Degree]:
45
Mounting bore angle measurement [degree]:
45
