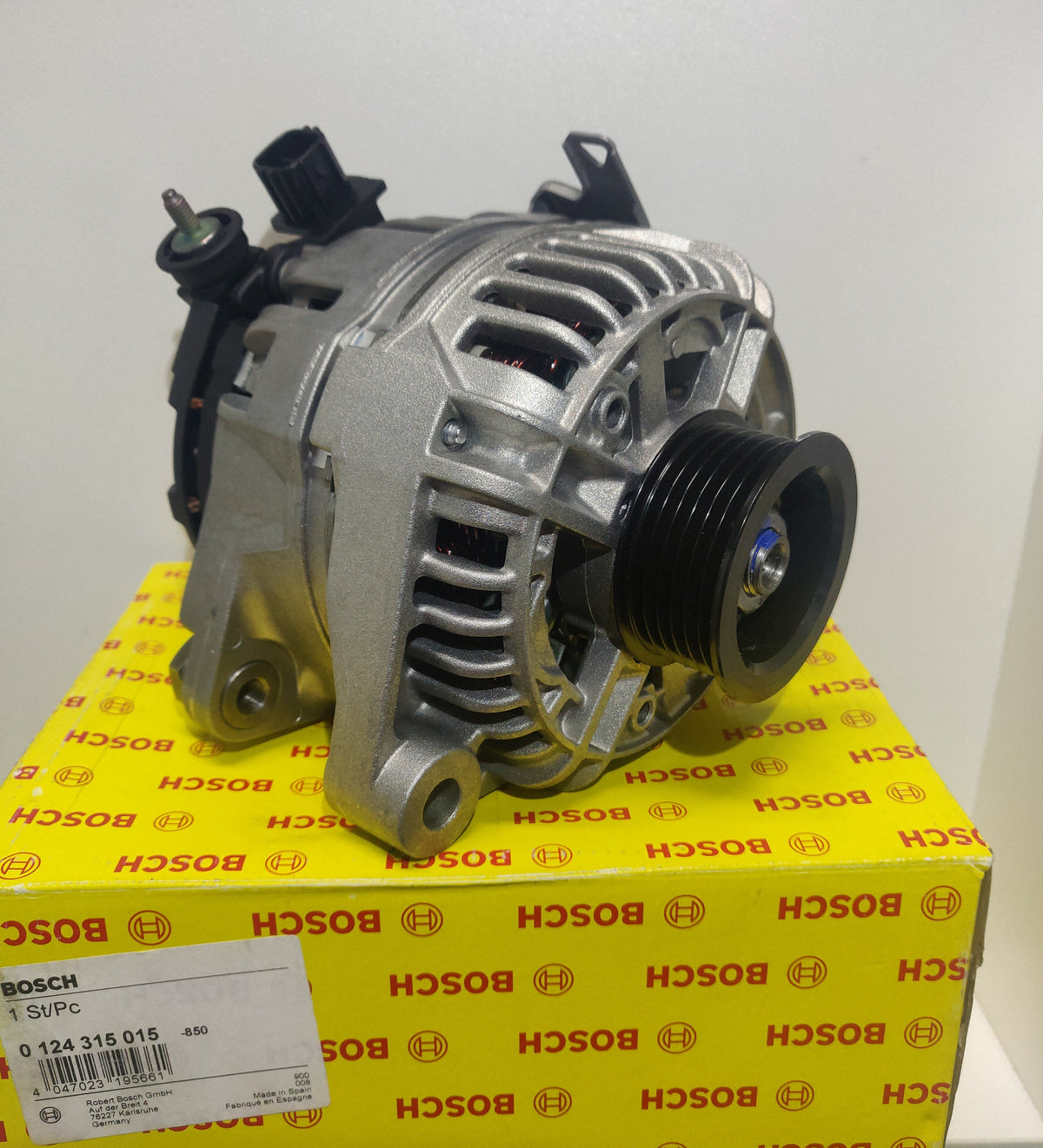

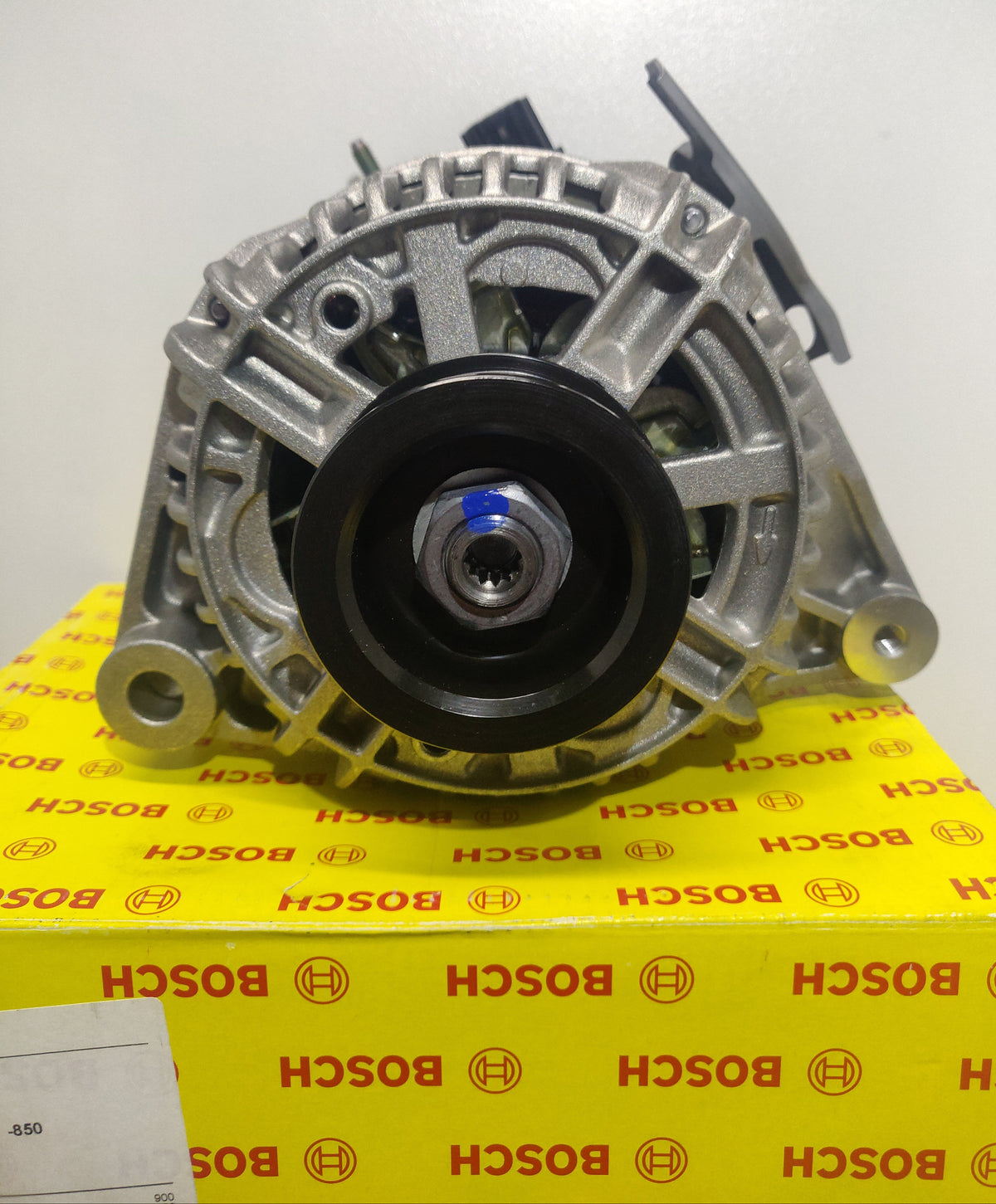

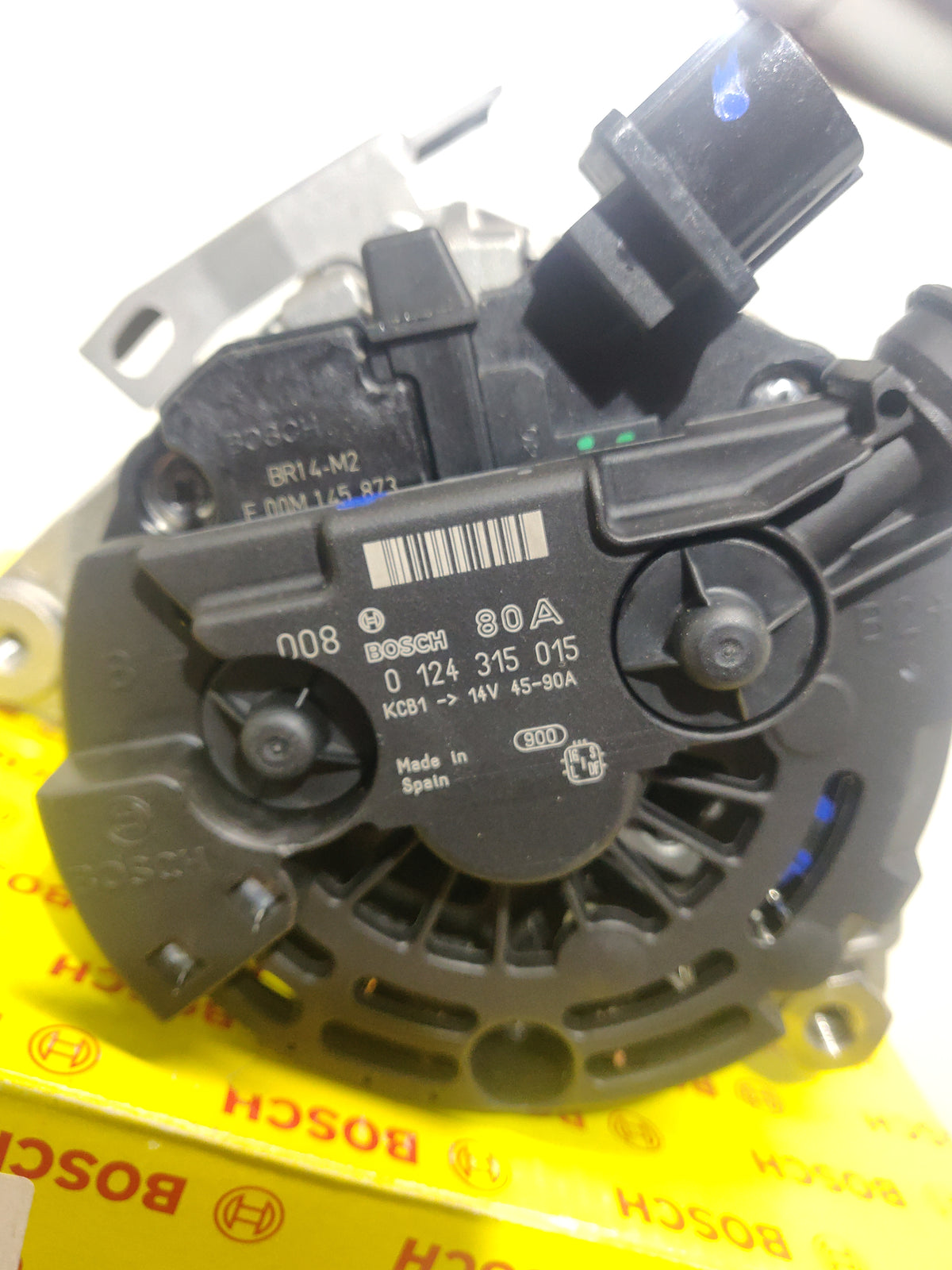

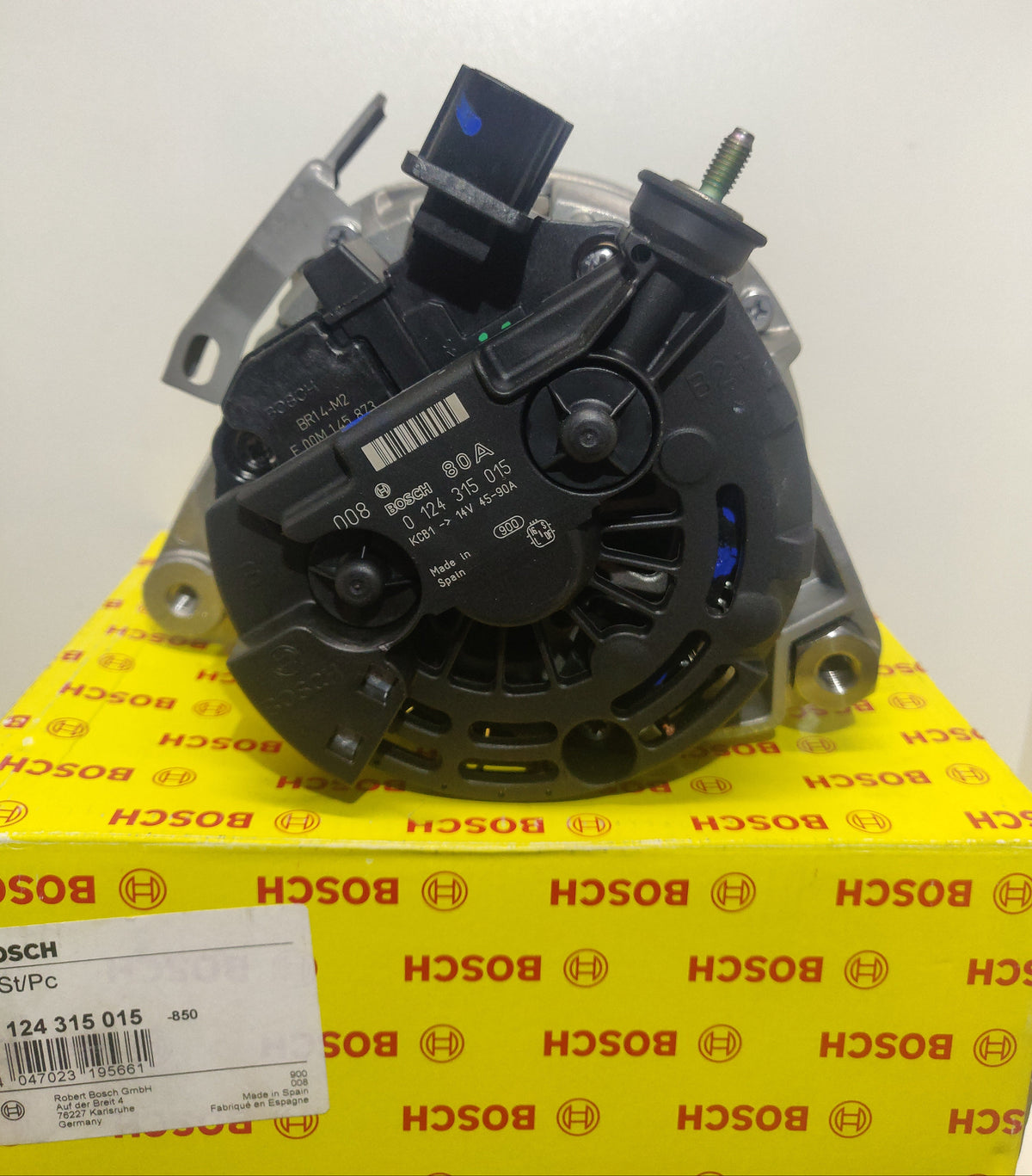

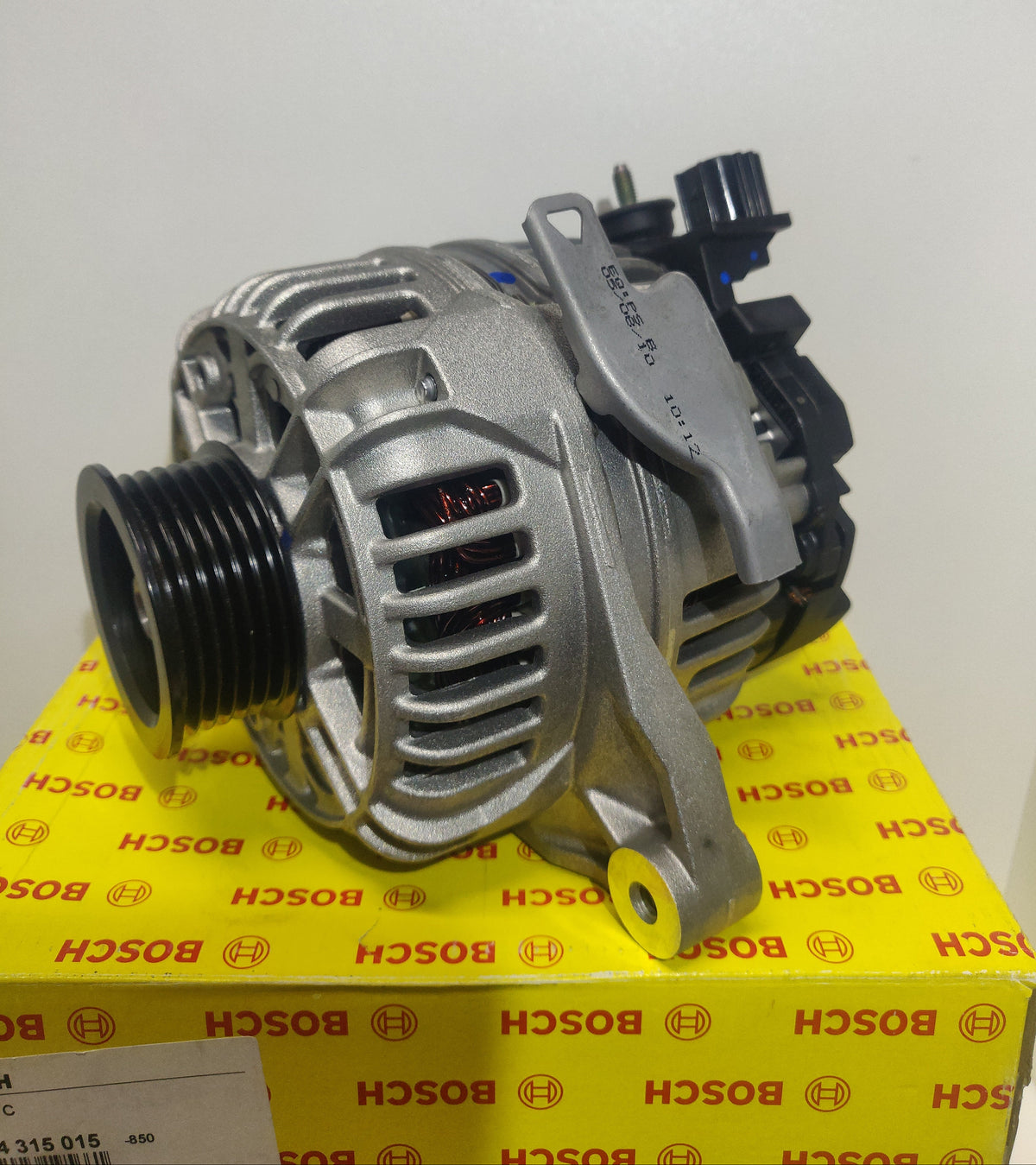

The Bosch 0124315015 is a brand-new 12V 80A alternator listed for Toyota Camry and Lexus ES300 3.0L 1MZ-FE applications detailed below. It features an internal regulator and a 6PV pulley.

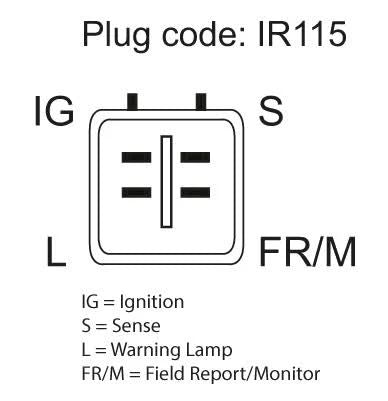

Important connector information: This alternator has a 4-pin square plug. Some models use a 3-pin oval plug. Compare your existing connector before ordering.
Specifications
| Brand |
Bosch |
| Part number |
0124315015 |
| Condition |
New |
| Voltage |
12V |
| Amperage |
80A |
| Plug type |
4-pin square |
| Mount top-bottom hole |
164 mm |
| Inside leg measurement |
51 mm |
| Front leg mounting hole |
10 mm |
| Rear leg mounting hole |
11 mm |
| Adjust mount hole |
8 mm |
| Pulley |
6PV |
| Pulley diameter |
65 mm |
| Regulator |
Internal |
| Shaft |
17 mm |
Listed Vehicle Applications
| Vehicle |
Model codes |
Years |
Engine |
| Toyota Camry |
MCV20R, MCV36R |
1997–2006 |
3.0L 1MZ-FE |
| Lexus ES300 |
MCV30R |
2001–2003 |
V6 3.0L 1MZ-FE |
Connector Compatibility
Vehicle model and year alone do not confirm compatibility. Check that your original alternator uses the 4-pin square connector, and compare the part number, mounting dimensions and pulley specifications before purchase. Some listed models may use a 3-pin oval connector instead.
Warranty
2 year / 50,000 km warranty.
Frequently Asked Questions
What plug does the Bosch 0124315015 alternator use?
This alternator has a 4-pin square plug. Some models use a 3-pin oval plug, so compare your existing connector before ordering.
Which vehicles are listed for this alternator?
The listed applications are Toyota Camry MCV20R and MCV36R, 1997–2006, and Lexus ES300 MCV30R, 2001–2003, with the 3.0L 1MZ-FE engine. Confirm the connector and mounting specifications against your original alternator.
What are its voltage and amperage ratings?
The Bosch 0124315015 alternator is rated at 12V and 80A.
What pulley and regulator does it have?
The listed specifications include a 6PV pulley with a 65 mm diameter and an internal regulator.
Is this alternator new or remanufactured?
This listing is for a brand-new Bosch alternator.
