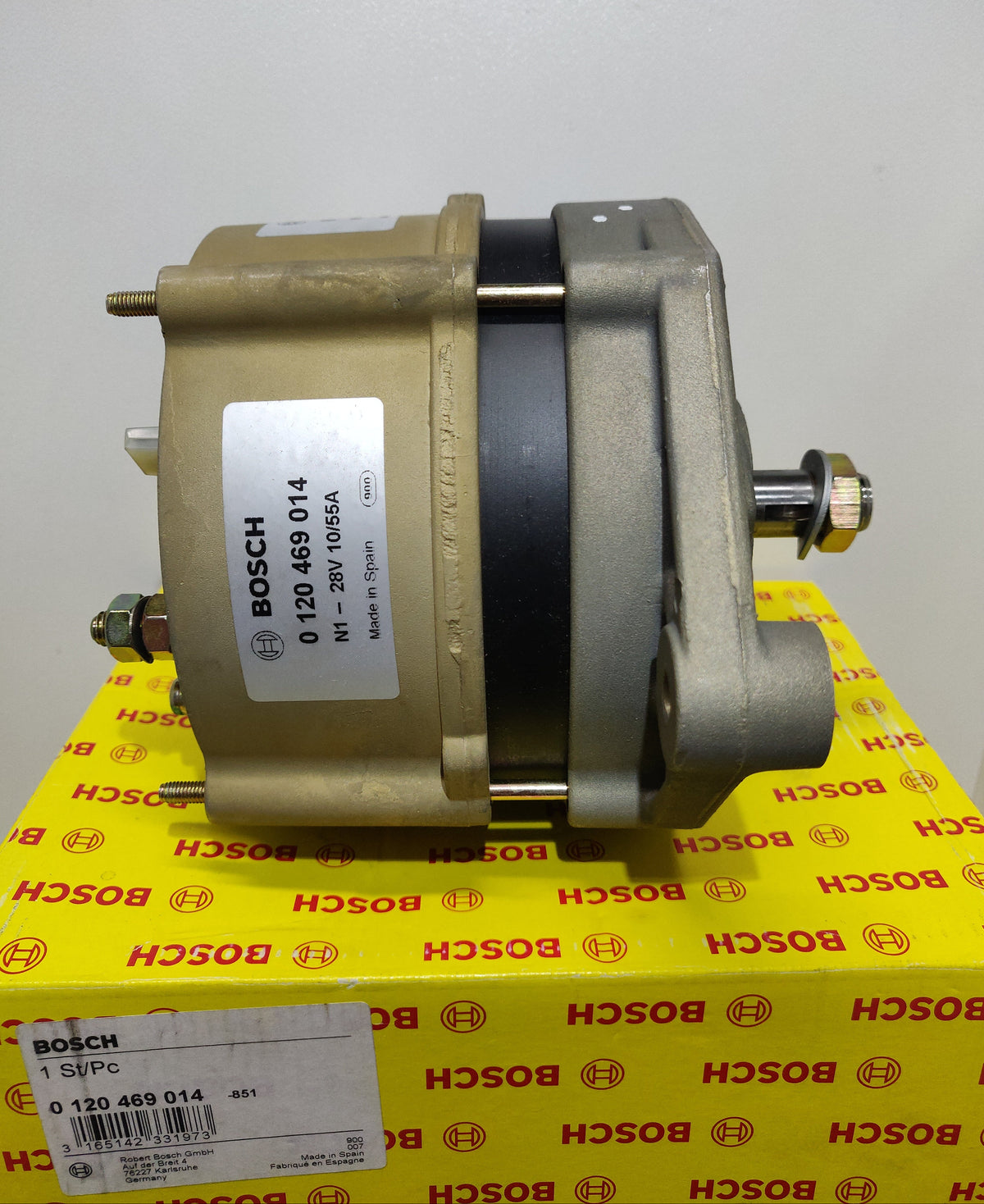

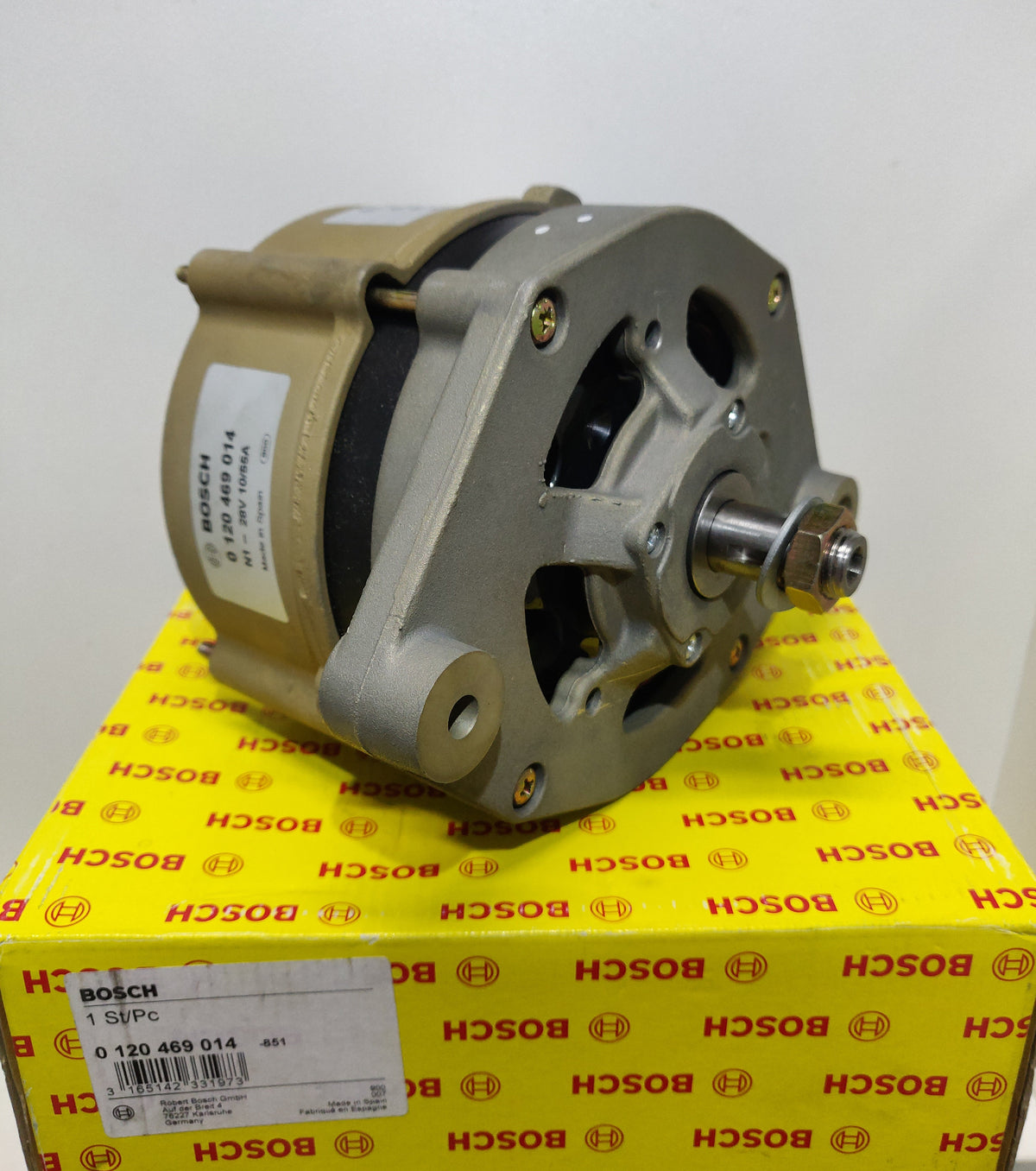

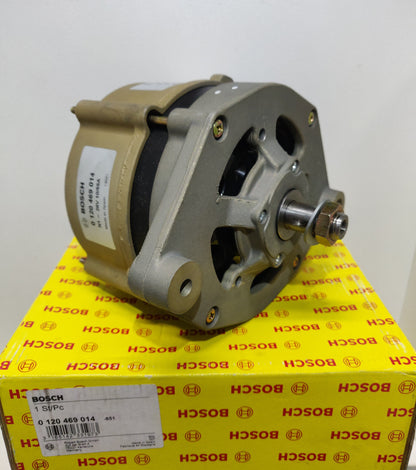

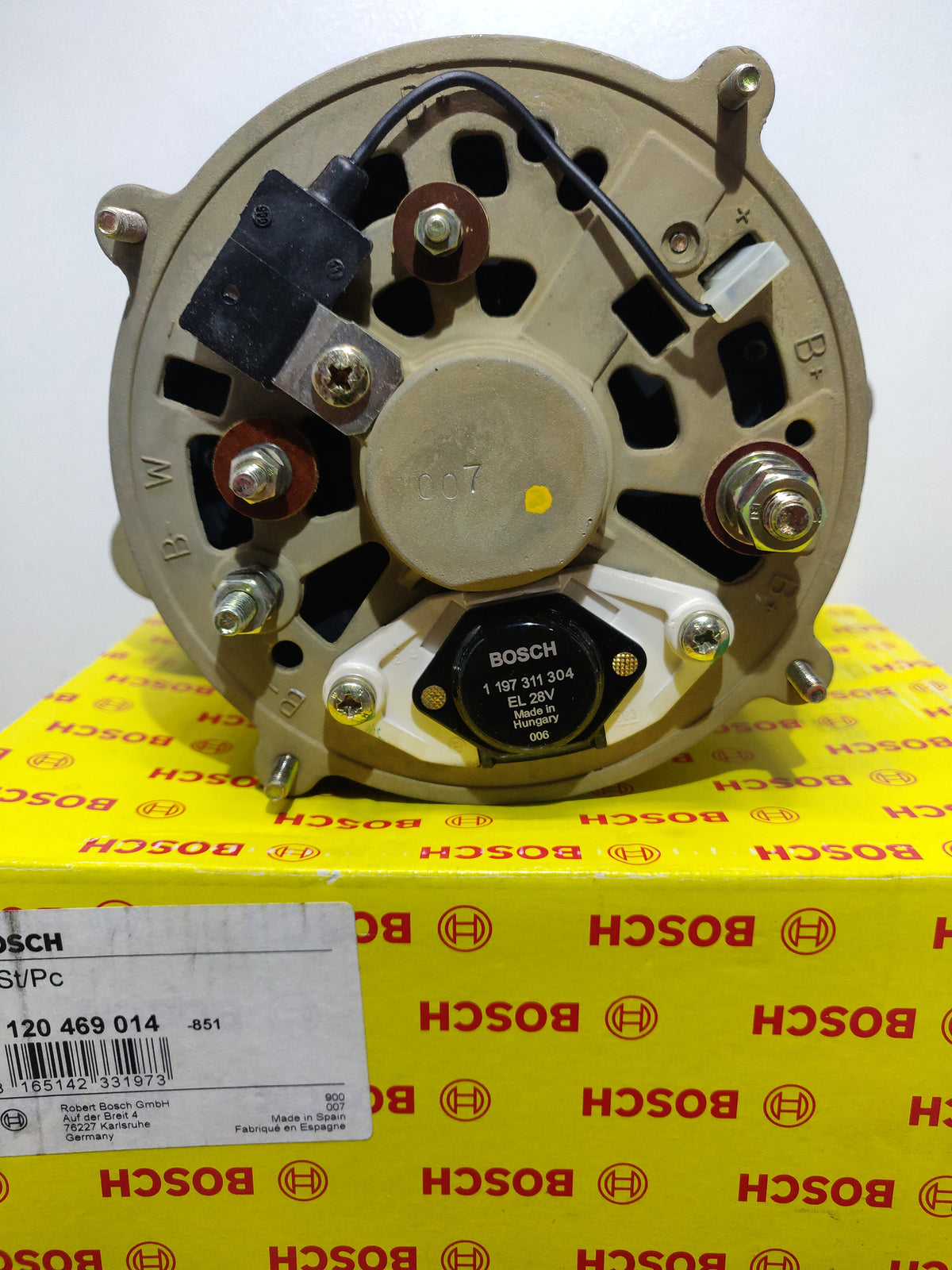

This new genuine Bosch 0120469014 alternator is rated at 28V and 55A. It features an internal regulator and single-leg mount, with listed Volvo vehicle applications and engine references detailed below.
Specifications
| Brand |
Bosch |

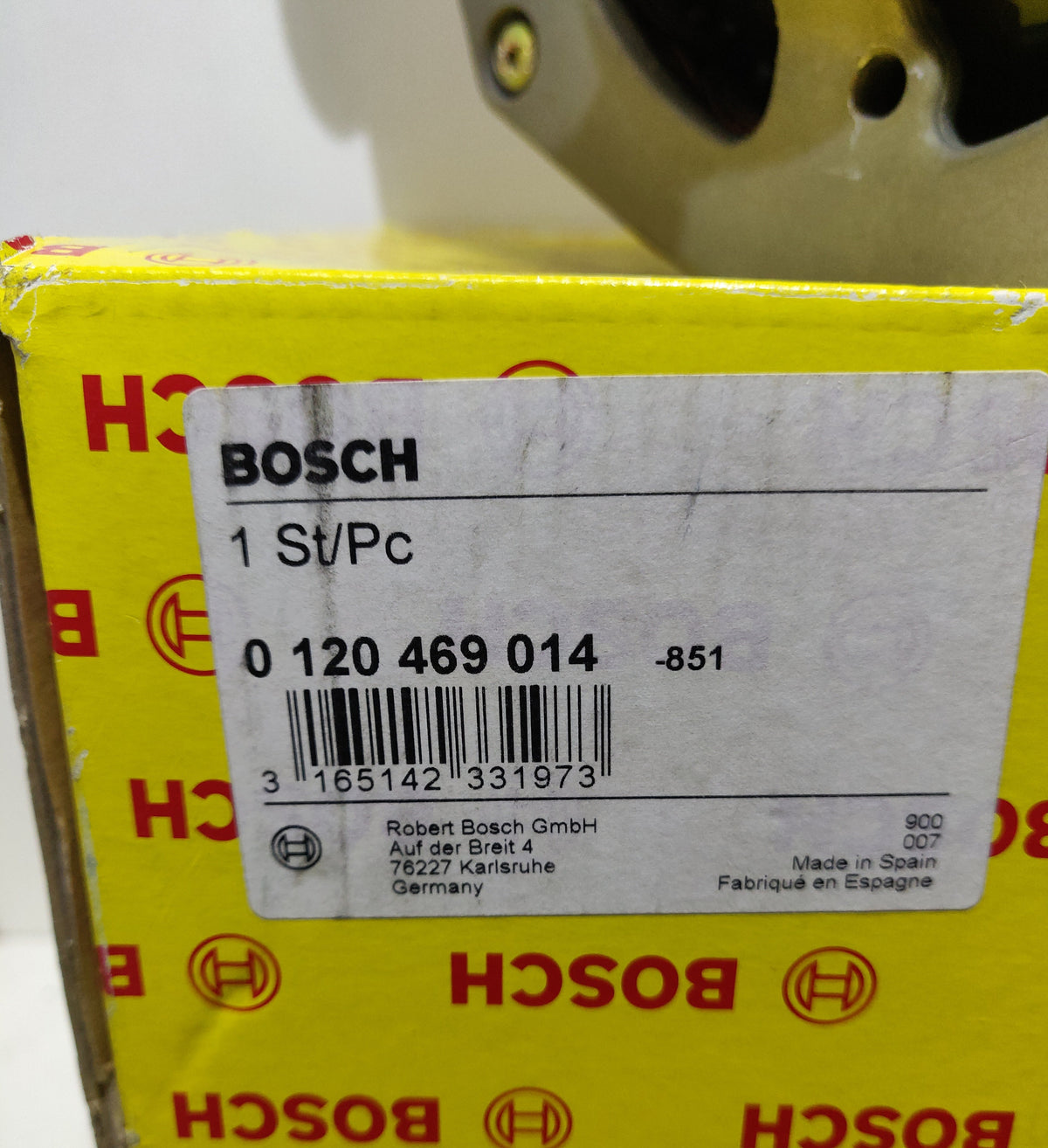

| Part number |
0120469014 |
| Part number shown in supplied specification table |
120469014 |
| Type |
Alternator |
| Condition |
New |
| Unit of measure |
Each |
| Voltage |
28V |
| Amperage |
55A |

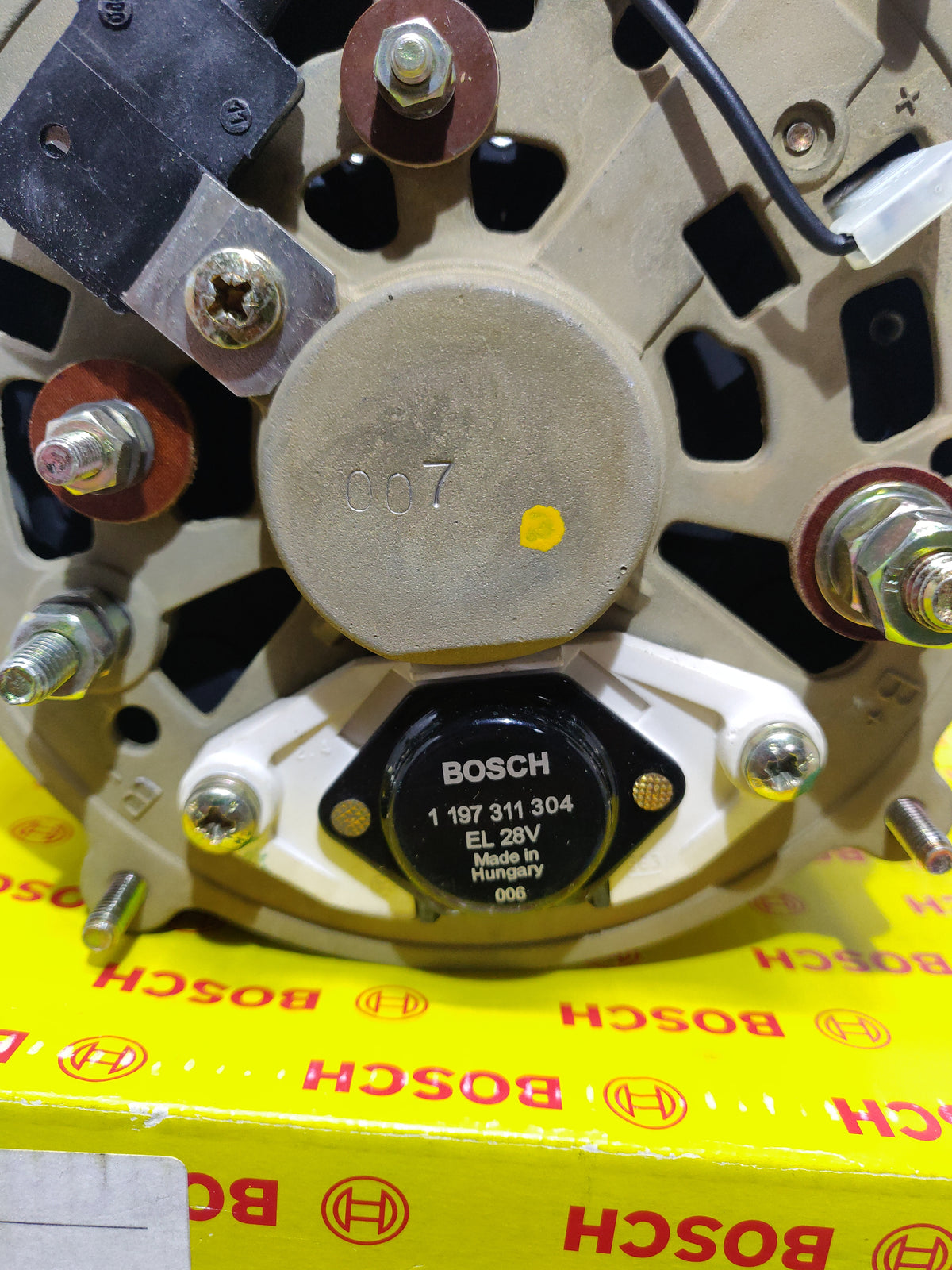

| Regulator type |
Internal |

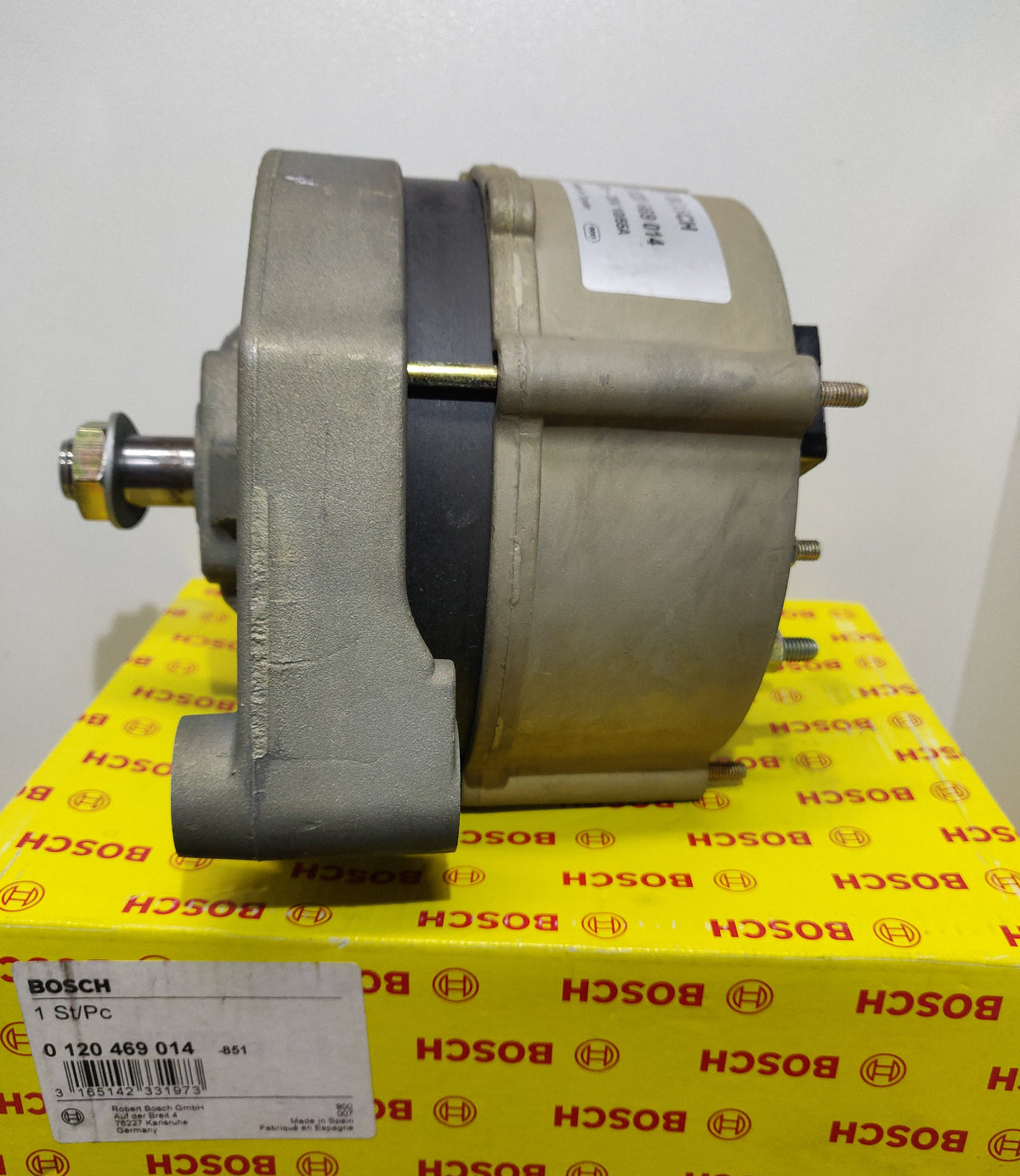

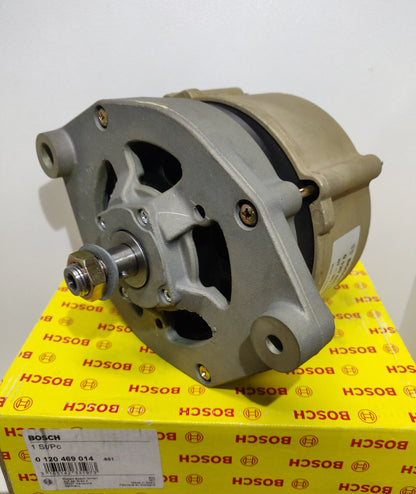

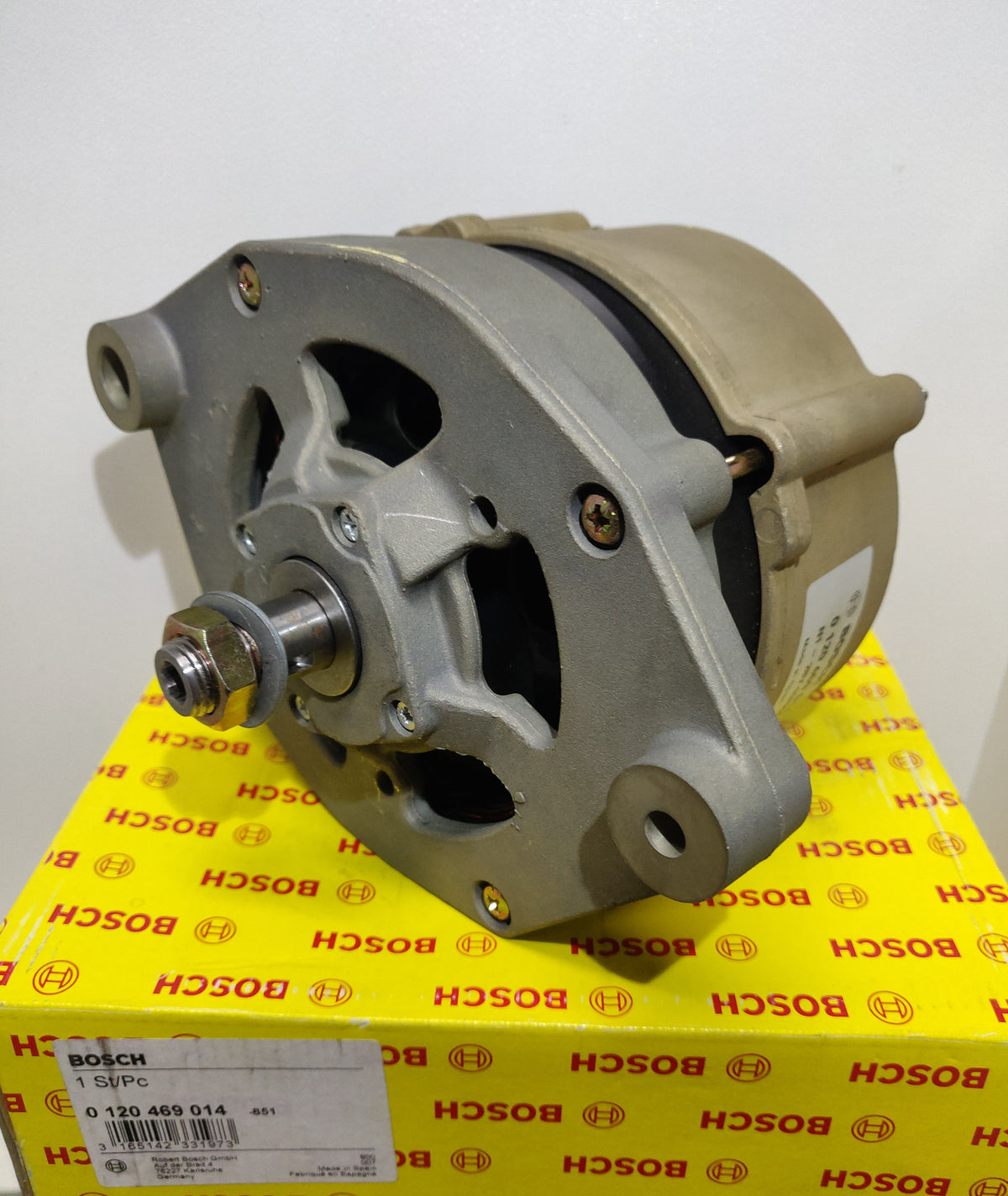

| Alternator mount |
Single leg |
| Mount-leg thickness |
50 mm |
| Mount centre-to-centre |
177 mm |
| Adjusting-hole diameter |
8 |
| Pivot-hole diameter |
14 |
| Shaft diameter |
17 mm |
| Suits unit make |
Bosch |
| Listed unit weight |
5.9 kg |
Listed Volvo Vehicle Applications
| Model |
Years |
| Volvo B10 |
1985–2001 |
| Volvo F10 |
1985–1995 |
| Volvo FL10 |
1985–1998 |
| Volvo FL6 |
1985–2000 |
| Volvo FL7 |
1986–1999 |
| Volvo FL |
2000–2006 |
| Volvo NL |
1991–2001 |
Compare the original alternator’s part number, voltage, amperage, mounting dimensions and electrical connections before ordering. Model and year listings alone do not confirm suitability for every vehicle configuration.
Listed Engine References
The supplied application information lists Volvo D10A, D6A, TD101, TD103, TD122 and TD61 engines. These references are not mapped to individual model-year applications in this listing.
Warranty
Listed warranty: 2YR/40,000KM.
Frequently Asked Questions
What voltage and amperage is the Bosch 0120469014 alternator?
The Bosch 0120469014 alternator is rated at 28V and 55A.
Is this Bosch alternator new or remanufactured?
This listing is for a new genuine Bosch alternator, not a remanufactured unit.
Which Volvo models are listed for this alternator?
The listed applications are Volvo B10 1985–2001, F10 1985–1995, FL10 1985–1998, FL6 1985–2000, FL7 1986–1999, FL 2000–2006 and NL 1991–2001. Confirm suitability against the original alternator and mounting specifications before ordering.
What mounting arrangement and regulator does it have?
The listed specifications show a single-leg mount, internal regulator, 50 mm mount-leg thickness, 177 mm mounting centre-to-centre measurement and 17 mm shaft diameter.
How do I check whether this alternator suits my Volvo?
Compare the original alternator’s part number, voltage, amperage, mounting dimensions and electrical connections. Use the listed vehicle years and engine references as application guidance rather than a guarantee of fitment.
